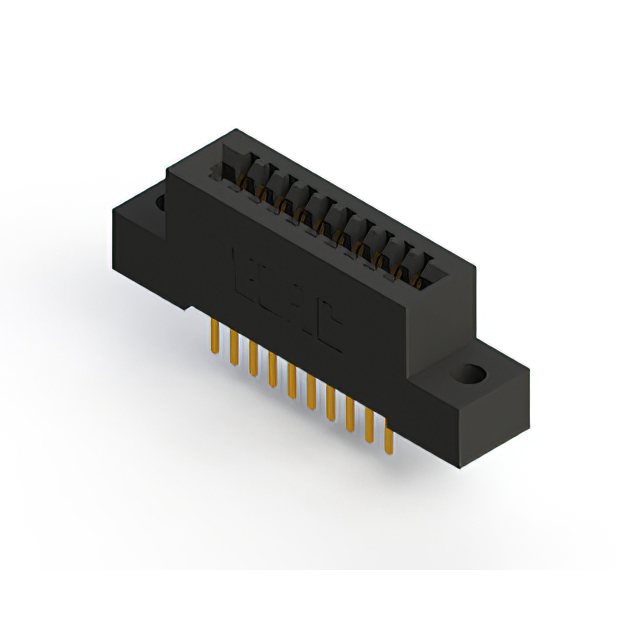

392-020-520-202

Active

EDAC Inc.

CARD EDGE CONNECTOR ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Card Edge Brochure

392-020-520-202

Active

EDAC Inc.

CARD EDGE CONNECTOR ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet Card Edge Brochure

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	392-020-520-202

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	Flush Mount, Top Opening, Unthreaded
Flange Feature [diameter]	3.25 mm
Flange Feature [diameter]	0.128 "
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole
Number of Positions	20
Number of Positions/Bay/Row [custom]	10
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Read Out	Dual
Termination	Solder
Termination Rows	2

392-020 Series

...

Part	Mounting Type	Flange Feature [diameter]	Flange Feature [diameter]	Flange Feature	Contact Material	Number of Rows	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Material - Insulation	Read Out	Termination	Contact Finish Thickness	Contact Finish Thickness	Pitch [x]	Pitch [x]	Contact Finish	Gender	Number of Positions/Bay/Row [custom]	Termination Rows	Card Type	Color	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Number of Positions	Number of Positions/Bay/Row [custom]	Number of Positions/Bay/Row [custom]	Number of Positions/Bay/Row [custom]	Features
EDAC Inc. 392-020-542-202	Through Hole	3.25 mm	0.128 "	Flush Mount Top Opening Unthreaded	Copper Alloy	2	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic	Dual	Wire Wrap	10 Áin	0.25 Ám	2.54 mm	0.1 in	Gold	Female	10	2	Non Specified - Dual Edge	Black	-40 °C	105 ░C	Cantilever	20
EDAC Inc. 392-020-540-107	Through Hole			Flush Mount M3 Threaded Insert Top Opening	Copper Alloy	1	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic	Single	Wire Wrap	10 Áin	0.25 Ám	2.54 mm	0.1 in	Gold	Female		1	Non Specified - Single Edge	Black	-40 °C	105 ░C	Cantilever	20	20	20	20
EDAC Inc. 392-020-560-203	Board Edge Straddle Mount	2.95 mm	0.116 in	Floating Bobbin Flush Mount	Copper Alloy	2	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic	Dual	Solder	10 Áin	0.25 Ám	2.54 mm	0.1 in	Gold	Female	10	2	Non Specified - Dual Edge	Black	-40 °C	105 ░C	Cantilever	20				Card Extender
EDAC Inc. 392-020-520-103	Through Hole	2.95 mm	0.116 in	Floating Bobbin Flush Mount	Copper Alloy	1	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic	Single	Solder	10 Áin	0.25 Ám	2.54 mm	0.1 in	Gold	Female		1	Non Specified - Single Edge	Black	-40 °C	105 ░C	Cantilever	20	20	20	20
EDAC Inc. 392-020-556-204	Board Edge Straddle Mount	3.96 mm	0.156 in	Flush Mount Top Opening Unthreaded	Copper Alloy	2	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic	Dual	Solder	10 Áin	0.25 Ám	2.54 mm	0.1 in	Gold	Female	10	2	Non Specified - Dual Edge	Black	-40 °C	105 ░C	Cantilever	20				Card Extender
EDAC Inc. 392-020-555-203	Board Edge Straddle Mount	2.95 mm	0.116 in	Floating Bobbin Flush Mount	Copper Alloy	2	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic	Dual	Solder Eyelet(s)	10 Áin	0.25 Ám	2.54 mm	0.1 in	Gold	Female	10	2	Non Specified - Dual Edge	Black	-40 °C	105 ░C	Cantilever	20				Card Extender
EDAC Inc. 392-020-520-202	Through Hole	3.25 mm	0.128 "	Flush Mount Top Opening Unthreaded	Copper Alloy	2	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic	Dual	Solder	10 Áin	0.25 Ám	2.54 mm	0.1 in	Gold	Female	10	2	Non Specified - Dual Edge	Black	-40 °C	105 ░C	Cantilever	20
EDAC Inc. 392-020-523-204	Through Hole	3.96 mm	0.156 in	Flush Mount Top Opening Unthreaded	Copper Alloy	2	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic	Dual	Solder	10 Áin	0.25 Ám	2.54 mm	0.1 in	Gold	Female	10	2	Non Specified - Dual Edge	Black	-40 °C	105 ░C	Cantilever	20
EDAC Inc. 392-020-520-107	Through Hole			Flush Mount M3 Threaded Insert Top Opening	Copper Alloy	1	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic	Single	Solder	10 Áin	0.25 Ám	2.54 mm	0.1 in	Gold	Female		1	Non Specified - Single Edge	Black	-40 °C	105 ░C	Cantilever	20	20	20	20
EDAC Inc. 392-020-524-208	Through Hole			4-40 Flush Mount Threaded Insert Top Opening	Copper Alloy	2	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic	Dual	Solder	10 Áin	0.25 Ám	2.54 mm	0.1 in	Gold	Female	10	2	Non Specified - Dual Edge	Black	-40 °C	105 ░C	Cantilever	20

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 8.14
Newark	Each	25	$ 8.67
		50	$ 8.47
		100	$ 8.06
		250	$ 7.86
		500	$ 7.58

Description

General part information

392-020 Series

20 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Black
