1002-024-01300
ActiveCnC Tech, LLC

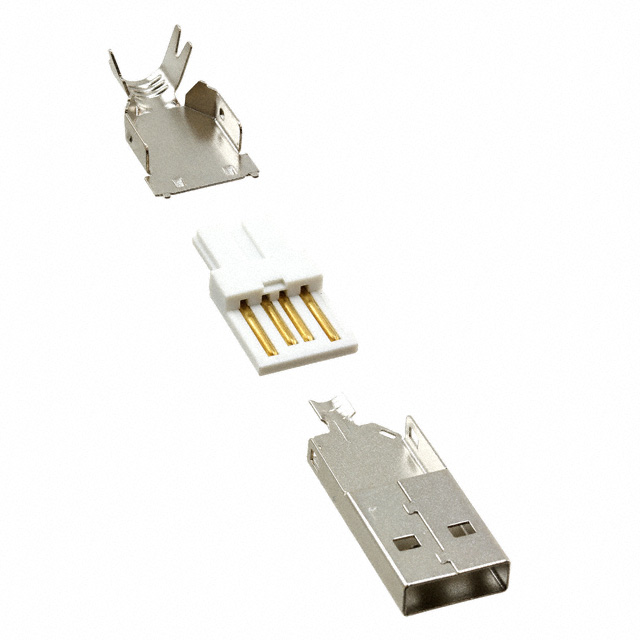

CONN PLUG USB2.0 TYPEA 4POS SLD
Deep-Dive with AI
Search across all available documentation for this part.
1002-024-01300
ActiveCnC Tech, LLC
CONN PLUG USB2.0 TYPEA 4POS SLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 1002-024-01300 |
|---|---|
| Connector Type | USB-A (USB TYPE-A) |
| Contact Finish | Gold |
| Current Rating (Amps) | 1.5 A |
| Gender | Plug |
| Insulation Color | White |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Contacts [custom] | 4 |
| Number of Ports | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Shell/Shielding Material | Steel (SPCC) |
| Specifications | USB 2.0 |
| Termination | Solder |
| Voltage - Rated | 30 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 0.94 | |
| 10 | $ 0.79 | |||
| 25 | $ 0.76 | |||
| 40 | $ 0.74 | |||
| 80 | $ 0.71 | |||
| 230 | $ 0.65 | |||
| 440 | $ 0.58 | |||
| 2000 | $ 0.48 | |||
| 4000 | $ 0.47 | |||
Description
General part information
1002-024 Series
USB-A (USB TYPE-A) USB 2.0 Plug Connector 4 Position Free Hanging (In-Line)
Documents
Technical documentation and resources
