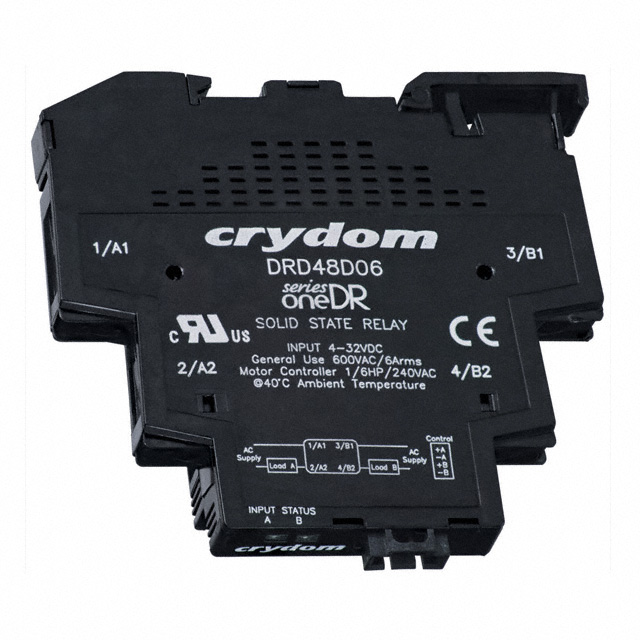

DRD48D06
ActiveSensata-Crydom
SSR RELAY SPST-NO 6A 48-600V
Deep-Dive with AI
Search across all available documentation for this part.
DRD48D06
ActiveSensata-Crydom
SSR RELAY SPST-NO 6A 48-600V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DRD48D06 |
|---|---|
| Approval Agency | cULus, CE |
| Circuit | SPST-NO (1 Form A) x 2 |
| Load Current | 6 A |
| Mounting Type | DIN Rail |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -30 ░C |
| Output Type | AC, Zero Cross |
| Package / Case | Module |
| Termination Style | Screw Terminal |
| Voltage - Input [Max] | 32 V |
| Voltage - Input [Min] | 4 V |
| Voltage - Load [Max] | 600 V |
| Voltage - Load [Min] | 48 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 120.72 | |
| 10 | $ 114.97 | |||
| 50 | $ 109.74 | |||
Description
General part information
DRD48D Series
Solid State SPST-NO (1 Form A) x 2 Module
