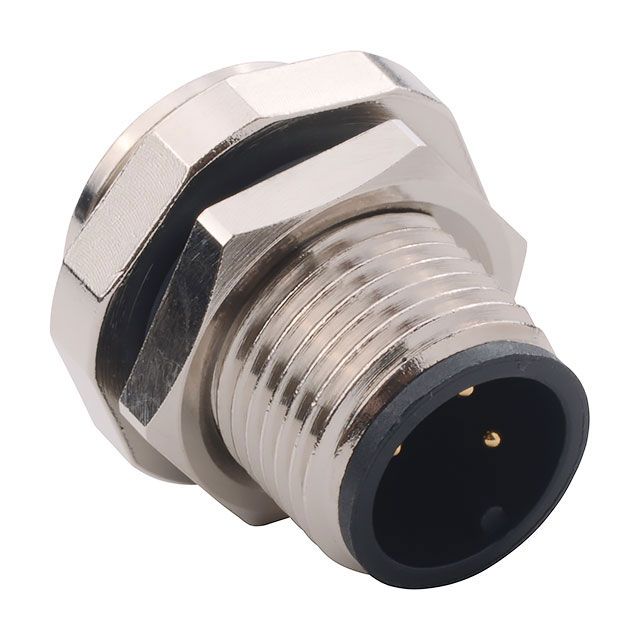

860-L03-113R001

Active

MH Connectors

CONN RCPT MALE 3POS GOLD SOLDER

Search across all available documentation for this part.

Active

MH Connectors

CONN RCPT MALE 3POS GOLD SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	860-L03-113R001

Color	Silver
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	Flash
Contact Material	Brass
Current Rating (Amps)	4 A
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Panel Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	A
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Brass
Shell Size - Insert	M12-3
Shielding	Shielded
Termination	Solder
Voltage Rating	250 VDC

Part	Contact Finish - Mating	Insert Material	Current Rating (Amps)	Termination	Mounting Feature	Shell Size - Insert	Material Flammability Rating	Orientation	Primary Material	Mounting Type	Shielding	Connector Type	Ingress Protection	Contact Finish Thickness - Mating	Color	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating	Contact Material	Shell Material	Shell Finish
MH Connectors 860-L03-113R001	Gold	Polybutylene Terephthalate (PBT)	4 A	Solder	Bulkhead - Front Side Nut	M12-3	UL94 V-0	A	Metal	Panel Mount Through Hole	Shielded	Male Pins Receptacle	IP67 - Dust Tight Waterproof	Flash	Silver	85 °C	-40 °C	250 VDC	Brass	Brass	Nickel

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	50	$ 11.73

General part information

3 Position Circular Connector Receptacle, Male Pins Solder
