165X10819X

Active

Amphenol CONEC

CONN BACKSHELL 9P 30DEG SHLD SLV

Search across all available documentation for this part.

Active

Amphenol CONEC

CONN BACKSHELL 9P 30DEG SHLD SLV

Technical Specifications

Parameters and characteristics for this part

Part	Hardware	Color	Number of Positions	Cable Exit	Shielding	Features	Plating	Material	Compatible Shell Size	Primary Material	Cable Type	Compatible D-Sub Size	Accessory Type
Amphenol CONEC 165X10829X	Assembly Hardware	Silver	15	30 ° 180 °	Shielded	Cover	Nickel	Metal Zinc	A	Metal	Round	15pos HD26pos	One Piece Backshell
Amphenol CONEC 165X10869X	Assembly Hardware	Silver	15	45 ° 180 °	Shielded	Cover	Nickel	Metal Zinc	A	Metal	Round	15pos HD26pos	One Piece Backshell
Amphenol CONEC 165X10889X	Assembly Hardware	Silver	37	45 ° 180 °	Shielded	Cover	Nickel	Metal Zinc	C	Metal	Round	37pos HD62pos	One Piece Backshell
Amphenol CONEC 165X10859X	Assembly Hardware	Silver	50	45 ° 180 °	Shielded	IP20	Nickel	Zinc Die Cast	D	Metal	Round	50pos HD78pos	One Piece Backshell
Amphenol CONEC 165X10819X	Assembly Hardware	Silver	9	30 °	Shielded	Cover	Nickel	Metal Zinc	E	Metal	Round	9pos HD15pos	One Piece Backshell
Amphenol CONEC 165X10879X	Assembly Hardware	Silver		45 ° 180 °	Shielded	Cover	Nickel	Metal Zinc	B	Metal	Round	25pos HD44pos	One Piece Backshell
Amphenol CONEC 165X10839X	Assembly Hardware	Silver		45 ° 180 °	Shielded	Cover	Nickel	Zinc Die Cast	B	Metal	Round	25pos HD44pos	Two Piece Backshell

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

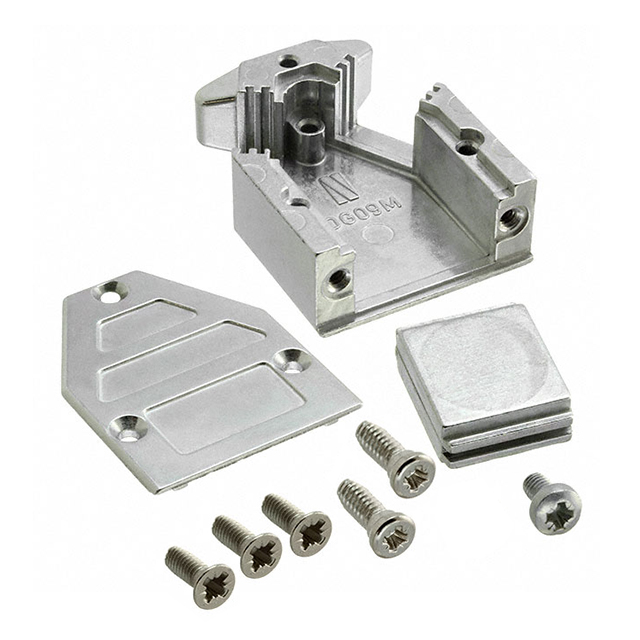

9 Position One Piece Backshell Connector Silver 30° Shielded

Technical documentation and resources
