FDA801S-VYT
Active4 X 50 W CLASS-D DIGITAL INPUT POWER AMP
Deep-Dive with AI
Search across all available documentation for this part.
FDA801S-VYT
Active4 X 50 W CLASS-D DIGITAL INPUT POWER AMP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | FDA801S-VYT |
|---|---|
| Grade | Automotive |
| Mounting Type | Surface Mount |
| Output Type | 4-Channel (Quad) |

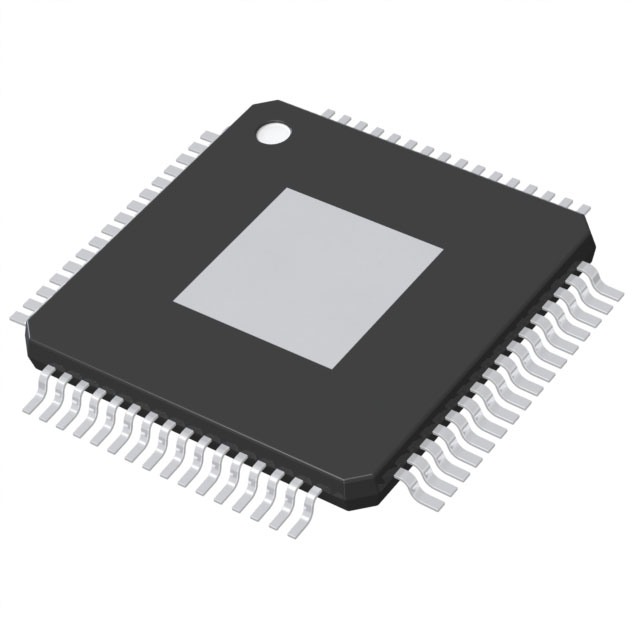

| Package / Case | 64-LQFP Exposed Pad |
| Supplier Device Package | 64-LQFP-EP (10x10) |
| Type | Class D |
| Voltage - Supply [Max] | 3.3 V |
| Voltage - Supply [Min] | 1.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 1000 | $ 6.48 | |
Description
General part information
FDA801 Series
FDA801 is a new BCD technology quad BRIDGE class D amplifier, specially intended for automotive applications.
Thanks to the technology used, it is possible to integrate a high performance D/A converter together with powerful MOSFET outputs in class D, to get an outstanding efficiency compared with the standard class AB.
The integrated D/A converter allows to reach outstanding performances (110 dB S/N ratio with 108 dB of dynamic range). The feedback loop includes the output L-C low-pass filter, allowing superior frequency response linearity and lower distortion independently from the inductor and capacitor quality.
