Technical Specifications
Parameters and characteristics for this part
| Specification | 6VW1 |
|---|---|
| Applications | General Purpose |
| Approval Agency | VDE, CSA, UR |
| Configuration | Two Stage |
| Current | 6 A |
| Filter Type | Single Phase |
| Frequency - Operating [Max] | 60 Hz |
| Frequency - Operating [Min] | 50 Hz |
| Inductance | 1.9 mH |
| Mounting Type | Chassis Mount |
| Operating Temperature [Max] | 40 °C |
| Operating Temperature [Min] | -10 °C |
| Termination Style | Quick Connect |
| Voltage - Rated AC | 250 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 40.91 | |
| 10 | $ 33.37 | |||
| 25 | $ 30.76 | |||
| 50 | $ 28.93 | |||
| 100 | $ 27.20 | |||
| 250 | $ 26.93 | |||
Description
General part information

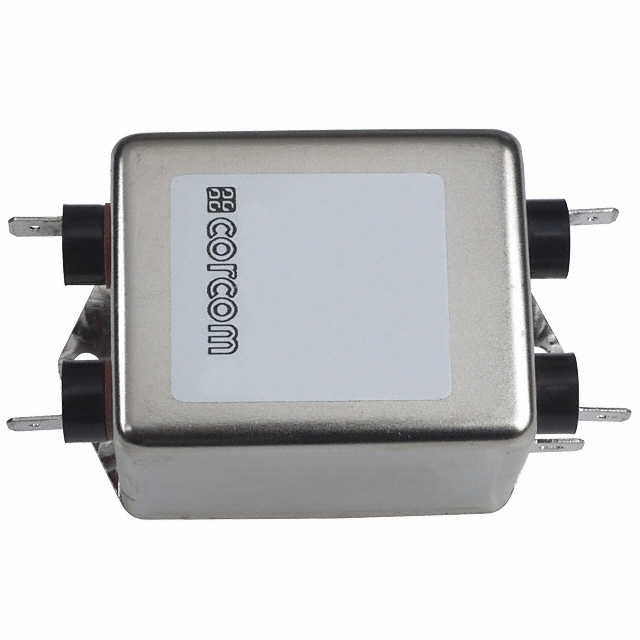

Corcom W Series
6 A Single Phase Filter, FASTON Input, .250" FASTON Output, 250 VAC, Corcom W, Single Phase Filters
