394572-E
ActiveTE Connectivity Raychem Cable Protection
MSPPM 5 M THR * 90B A V 137 094 * E008 J
Deep-Dive with AI
Search across all available documentation for this part.
394572-E
ActiveTE Connectivity Raychem Cable Protection
MSPPM 5 M THR * 90B A V 137 094 * E008 J
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 394572-E |
|---|---|
| Connector Type | Header |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Post | 157.5 Áin |
| Contact Finish Thickness - Post | 4 Ám |
| Contact Material | Copper Alloy |
| Contact Shape | Rectangular |
| Contact Type | Male Pin, Power |
| Current Rating (Amps) | 18 A |
| Fastening Type | Push-Pull |
| Features | Board Guide |
| Insulation Color | Black |
| Insulation Height [z] | 6.75 mm |
| Insulation Height [z] | 0.266 in |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pitch - Mating [x] | 0.079 in |
| Pitch - Mating [x] | 2 mm |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 13.49 | |
| 10 | $ 11.96 | |||
| 25 | $ 11.50 | |||
| 50 | $ 11.04 | |||
| 100 | $ 10.43 | |||
| 250 | $ 9.51 | |||
| 500 | $ 8.89 | |||
| 1000 | $ 8.16 | |||
Description
General part information
ERNI MicroSpeed Power Modules Series

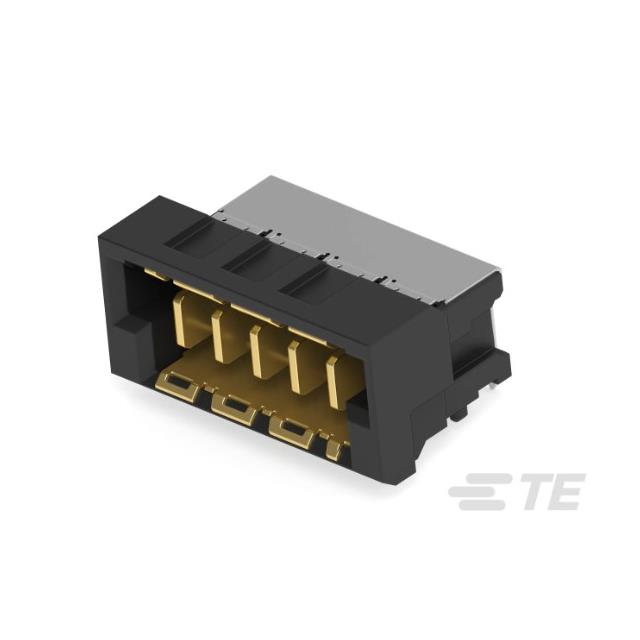

PCB Mount Plug, Right Angle, Board-to-Board, 5 Position, 2 mm [.079 in] Centerline, Fully Shrouded, ERNI MicroSpeed Power Modules
