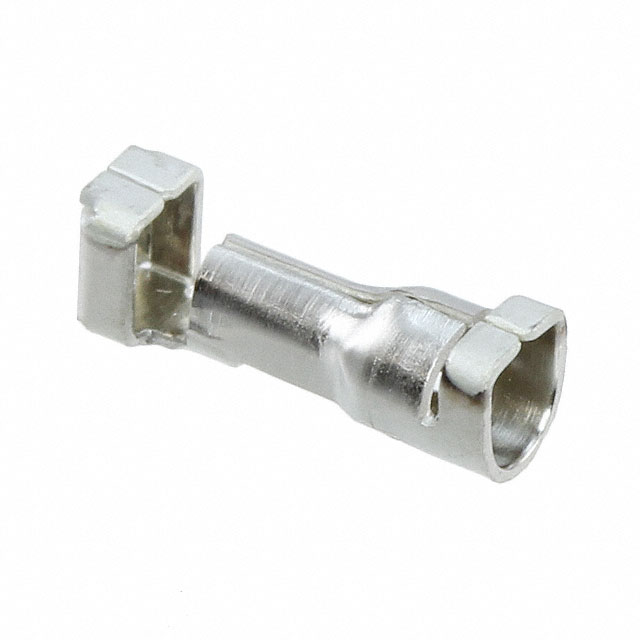

2834010-3
ActiveTE Connectivity Raychem Cable Protection
SLIM CONTACT FOR WIRE 20-24AWG
Deep-Dive with AI
Search across all available documentation for this part.
2834010-3
ActiveTE Connectivity Raychem Cable Protection
SLIM CONTACT FOR WIRE 20-24AWG
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 2834010-3 |
|---|---|
| Connector Type | Contact, Poke-In Wire |
| Contact Finish | Tin |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | Varies by Wire Gauge |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Style | Board to Cable/Wire |
| Termination | Solder |
| Voltage Rating | 300 VDC |
| Wire Gauge [Max] | 24 AWG |
| Wire Gauge [Min] | 20 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.23 | |
| 10 | $ 0.20 | |||
| 100 | $ 0.16 | |||
| 500 | $ 0.14 | |||
| 1000 | $ 0.14 | |||
| Digi-Reel® | 1 | $ 0.23 | ||
| 10 | $ 0.20 | |||
| 100 | $ 0.16 | |||
| 500 | $ 0.14 | |||
| 1000 | $ 0.14 | |||
| Tape & Reel (TR) | 3000 | $ 0.13 | ||
| 6000 | $ 0.11 | |||
| 15000 | $ 0.10 | |||
| 30000 | $ 0.09 | |||
| 75000 | $ 0.08 | |||
Description
General part information
BUCHANAN WireMate Slim Poke-In Series
Wire-to-Board, Printed Circuit Board, 2.45 mm [.096 in] Height, Surface Mount, 2 – 24 AWG, Power, BUCHANAN WireMate Slim Poke-In, Poke-In Connectors
