STTH30RQ06WL

Active

STMicroelectronics

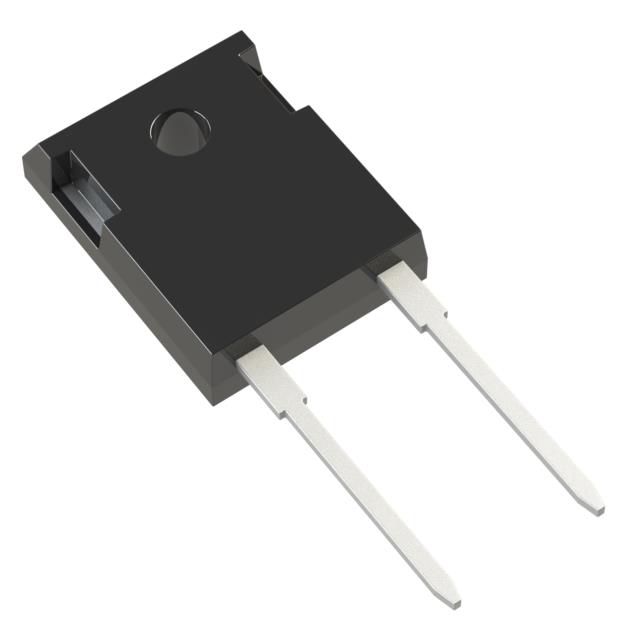

ULTRAFAST HIGH VOLTAGE RECTIFIER 600V 30A 2-PIN DO-247 LL TUBE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsProduct Change Notice EN Technical Data Sheet EN +7

STTH30RQ06WL

Active

STMicroelectronics

ULTRAFAST HIGH VOLTAGE RECTIFIER 600V 30A 2-PIN DO-247 LL TUBE

Deep-Dive with AI

DocumentsProduct Change Notice EN Technical Data Sheet EN +7

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	STTH30RQ06WL

Current - Average Rectified (Io)	30 A
Current - Reverse Leakage @ Vr	40 µA
Mounting Type	Through Hole
Operating Temperature - Junction [Max]	175 °C
Package / Case	TO-247-2
Reverse Recovery Time (trr)	55 ns
Speed	200 mA, 500 ns
Supplier Device Package	DO-247 LL
Technology	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	600 V
Voltage - Forward (Vf) (Max) @ If	2.95 V

STTH30RQ06-Y Series

Automotive 600 V, 30 A Soft Ultrafast Diode

Part	Reverse Recovery Time (trr)	Package / Case	Voltage - Forward (Vf) (Max) @ If	Current - Average Rectified (Io)	Mounting Type	Voltage - DC Reverse (Vr) (Max) [Max]	Operating Temperature - Junction [Max]	Technology	Current - Reverse Leakage @ Vr	Speed	Supplier Device Package	Qualification	Operating Temperature - Junction [Min]	Grade	Diode Configuration	Current - Average Rectified (Io) (per Diode)
STMicroelectronics STTH30AC06SP	60 ns	SC-65-3 TO-3P-3	1.95 V	30 A	Through Hole	600 V	175 °C	Standard	20 µA	200 mA 500 ns	TO-3P
STMicroelectronics STTH30R04WY		DO-247-2 (Straight Leads)	1.55 V	30 A	Through Hole	400 V	175 ░C	Standard	15 µA	200 mA 500 ns	DO-247	AEC-Q101	-40 °C	Automotive
STMicroelectronics STTH30RQ06D	55 ns	TO-220-2	2.95 V	30 A	Through Hole	600 V	175 °C	Standard	40 µA	200 mA 500 ns	TO-220AC
STMicroelectronics STTH3002CPI	22 ns		1.05 V		Through Hole	200 V	175 °C	Standard	20 µA	200 mA 500 ns	TOP-3I				1 Pair Common Cathode	15 A
STMicroelectronics STTH30R03CW	35 ns	TO-247-3	1.9 V		Through Hole	300 V	175 °C	Standard	20 µA	200 mA 500 ns	TO-247-3				1 Pair Common Cathode	15 A
STMicroelectronics STTH30L06CW	85 ns	TO-247-3	1.55 V		Through Hole	600 V	175 °C	Standard	15 µA	200 mA 500 ns	TO-247-3				1 Pair Common Cathode	20 A
STMicroelectronics STTH30W03CW	20 ns	TO-247-3	1.4 V		Through Hole	300 V	175 °C	Standard	10 µA	200 mA 500 ns	TO-247				1 Pair Common Cathode	15 A
STMicroelectronics STTH30RQ06WL	55 ns	TO-247-2	2.95 V	30 A	Through Hole	600 V	175 °C	Standard	40 µA	200 mA 500 ns	DO-247 LL
STMicroelectronics STTH30R06PI	70 ns	DOP3I-2 Insulated (Straight Leads)	1.85 V	30 A	Through Hole	600 V	175 °C	Standard	25 µA	200 mA 500 ns	DOP3I
STMicroelectronics STTH30L06D	90 ns	TO-220-2	1.55 V	30 A	Through Hole	600 V	175 °C	Standard	25 µA	200 mA 500 ns	TO-220AC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 3.44
		10	$ 2.26
		100	$ 1.59
		500	$ 1.36
Newark	Each	1	$ 3.96
		10	$ 3.32
		25	$ 2.67
		60	$ 2.03
		120	$ 1.94
		270	$ 1.85

Description

General part information

STTH30RQ06-Y Series

The STTH30ST06-Y, which uses ST Turbo 2, 600 V technology, is packaged in DO-247 and D²PAK with aluminum ribbon to ensure a high robustness. It especially suited for use in switching power supplies and automotive applications, industrial applications, as rectification and boost diode for circuits working in continuous conduction mode.
