MS3108A18-8P
ActiveAmphenol Industrial Operations

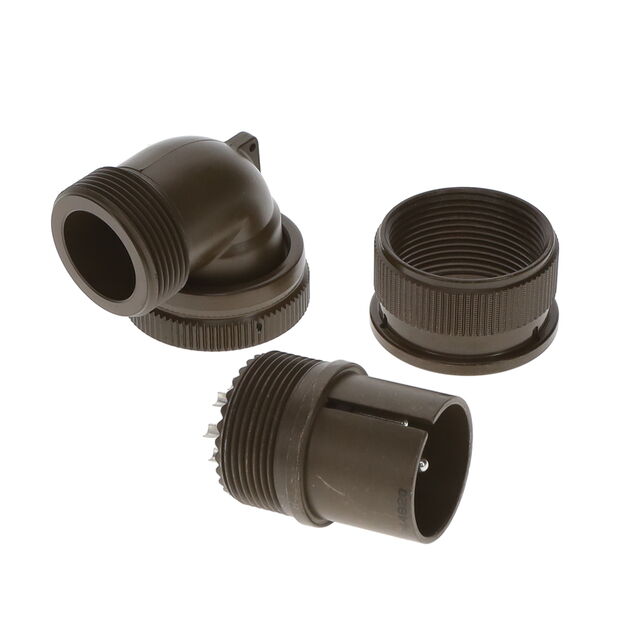

MIL-5015 MS/AC THREADED PLUG
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MS3108A18-8P
ActiveAmphenol Industrial Operations
MIL-5015 MS/AC THREADED PLUG
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MS3108A18-8P | MS3108A18 Series |
|---|---|---|
| - | - | |
| Applications | Military, Marine | Military, Marine |
| Color | Olive Drab | Olive Drab |
| Connector Type | Plug, Male Pins | Plug, Male Pins, Female Sockets |
| Contact Finish - Mating | Silver | Silver |
| Contact Material | Copper Alloy | Copper Alloy |
| Current Rating (Amps) | 13 A, 23 A | 13 - 23 A |
| Features | - | Coupling Nut |
| Grade | Military | Military |
| Ingress Protection | Environment Resistant | Environment Resistant |
| Insert Material | Neoprene | Neoprene |
| Mounting Type | Free Hanging (In-Line), Right Angle | Free Hanging (In-Line), Right Angle |
| Number of Positions | 8 | 4 - 8 |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Orientation | N | N |
| Primary Material | Metal | Metal |
| Qualification | MIL-DTL-5015 | MIL-DTL-5015, MIL-5015 |
| Shell Finish | Olive Drab Chromate over Cadmium | Olive Drab Chromate over Cadmium |
| Shell Material | Aluminum Alloy | Aluminum Alloy |
| Shell Size - Insert | 18-8 | 18-8, 18-12, 18-10 |
| Shielding | Unshielded | Unshielded |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 53.88 | |
| 10 | $ 49.44 | |||
| 25 | $ 47.54 | |||
| 50 | $ 45.96 | |||
| 100 | $ 43.42 | |||
MS3108A18 Series
PLUG
| Part | Shielding | Primary Material | Operating Temperature [Min] | Operating Temperature [Max] | Grade | Shell Size - Insert | Current Rating (Amps) | Connector Type | Color | Contact Finish - Mating | Contact Material | Qualification | Insert Material | Ingress Protection | Shell Material | Number of Positions | Mounting Type | Applications | Orientation | Shell Finish | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Industrial Operations MS3108A18-26S | |||||||||||||||||||||
Amphenol Industrial Operations MS3108A18-17S | |||||||||||||||||||||
Amphenol Industrial Operations MS3108A18-11SX | |||||||||||||||||||||
Amphenol Industrial Operations MS3108A18-6S | |||||||||||||||||||||
Amphenol Industrial Operations MS3108A18-30P | |||||||||||||||||||||
Amphenol Industrial Operations MS3108A18-28S | |||||||||||||||||||||
Amphenol Industrial Operations MS3108A18-5P | |||||||||||||||||||||
Amphenol Industrial Operations MS3108A18-24S | |||||||||||||||||||||
Amphenol Industrial Operations MS3108A18-8P | Unshielded | Metal | -55 °C | 125 °C | Military | 18-8 | 13 A, 23 A | Male Pins, Plug | Olive Drab | Silver | Copper Alloy | MIL-DTL-5015 | Neoprene | Environment Resistant | Aluminum Alloy | 8 | Free Hanging (In-Line), Right Angle | Marine, Military | N | Olive Drab Chromate over Cadmium | |
Amphenol Industrial Operations MS3108A18-27P |
Description
General part information
MS3108A18 Series
8 Position Circular Connector Plug, Male Pins Solder Cup
