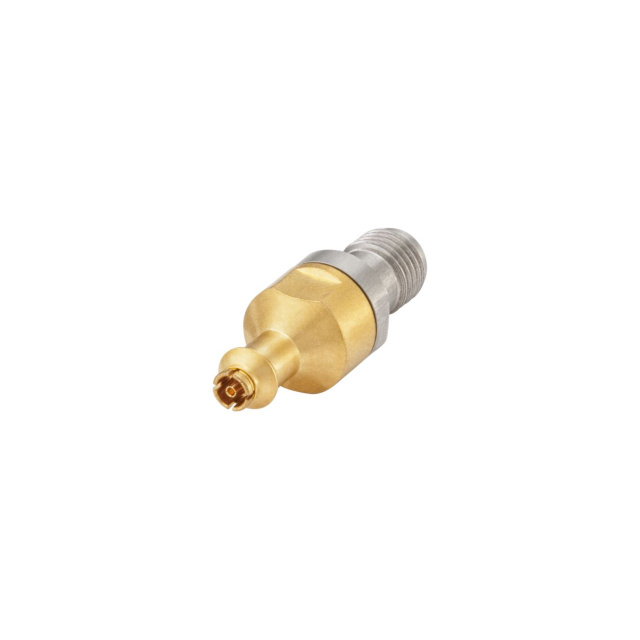

Specification	17K132-K00S5

Adapter Series	SMA to SMP
Adapter Type	Jack to Jack
Body Finish	Passivated, Gold
Body Material	Beryllium Copper, Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Center Gender	Female
Conversion Type	Between Series
Convert From (Adapter End)	SMA Jack, Female Socket
Convert To (Adapter End)	SMP Jack, Female Socket
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Threaded, Snap-On
Frequency - Max	6000 MHz
Impedance	50 Ohm
Insertion Loss	0.12 dB
Mating Cycles	500 cycles
Mounting Type	Free Hanging (In-Line)
Operating Temperature (Max)	155 °C
Operating Temperature (Min)	-65 °C
Style	Straight

17K132 Series

Part	Center Contact Material	Operating Temperature (Max)	Operating Temperature (Min)	Insertion Loss	Body Material	Mating Cycles	Dielectric Material	Body Finish	Center Gender	Adapter Series	Convert From (Adapter End)	Fastening Type	Center Contact Plating	Adapter Type	Mounting Type	Convert To (Adapter End)	Style	Conversion Type	Frequency - Max	Impedance
Rosenberger 17K132-K00S5	Beryllium Copper	155 °C	-65 °C	0.12 dB	Beryllium Copper Stainless Steel	500 cycles	Polytetrafluoroethylene (PTFE)	Gold Passivated	Female	SMA to SMP	Female Socket SMA Jack	Snap-On Threaded	Gold	Jack to Jack	Free Hanging (In-Line)	Female Socket SMP Jack	Straight	Between Series	6000 MHz	50 Ohm
