Description
General part information
H3070 Series

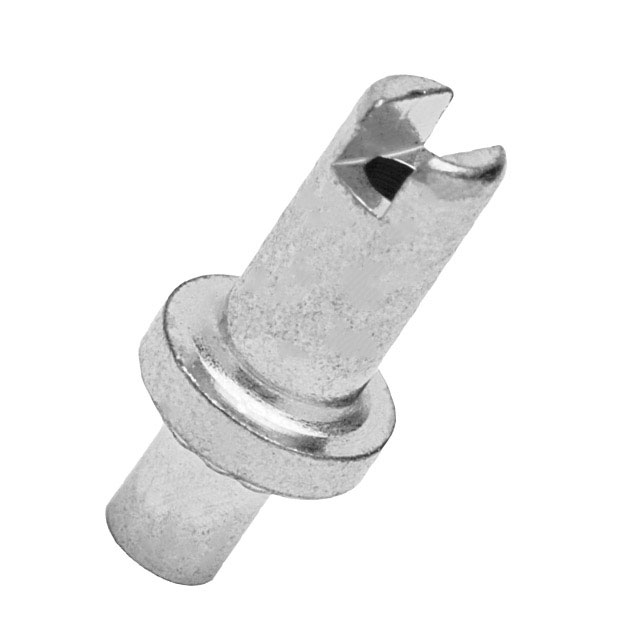

Terminal Turret Connector Single End, Fork, Hollow 0.246" ~ 0.261" (6.25mm ~ 6.63mm) Tin
Technical Specifications
Parameters and characteristics for this part
| Specification | H3070-01 |
|---|---|
| Board Thickness | 0.063 in |
| Contact Finish | Tin |
| Contact Material | Brass Alloy |
| Flange Diameter (Max) | 0.159 in |
| Flange Diameter (Min) | 0.153 in |
| Insulation | Non-Insulated |
| Length - Above Board (Max) | 0.261 in |
| Length - Above Board (Min) | 0.246 in |
| Length - Below Flange (Max) | 0.099 in |
| Length - Below Flange (Min) | 0.094 in |
| Length - Overall (Max) | 0.36 in |
| Length - Overall (Min) | 0.34 in |
| Mounting Hole Diameter (Max) | 0.083 in |
| Mounting Hole Diameter (Min) | 0.08 in |
| Mounting Type | Through Hole |
| Number of Turrets | Single |
| Staking Side OD (Max) | 0.079 in |
| Staking Side OD (Min) | 0.076 in |
| Terminal Type | Single End, Fork, Hollow |
| Termination | Swage |
