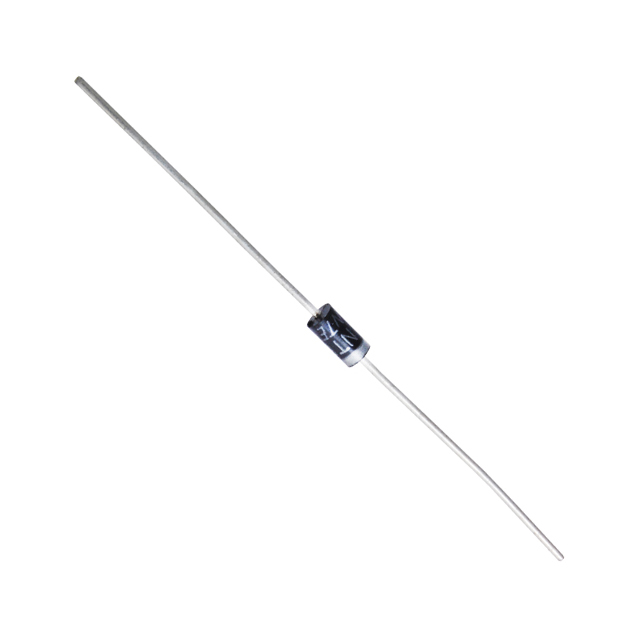

UF4002

Active

NTE Electronics, Inc

DIODE GEN PURP 100V 1A DO41

Search across all available documentation for this part.

Active

NTE Electronics, Inc

DIODE GEN PURP 100V 1A DO41

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	UF4002	UF400 Series

Capacitance @ Vr, F	17 pF	17 pF
Current - Average Rectified (Io)	1 A	1 A
Current - Reverse Leakage @ Vr	10 µA	10 µA
Mounting Type	Through Hole	Through Hole
Operating Temperature - Junction [Max]	150 °C	150 °C
Operating Temperature - Junction [Min]	-65 C	-65 C
Package / Case	DO-204AL, DO-41, Axial	DO-204AL, DO-41, Axial
Reverse Recovery Time (trr)	50 ns	50 - 75 ns
Speed	200 mA, 500 ns	200 - 500 mA
Supplier Device Package	DO-41	DO-41
Technology	Standard	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	100 V	100 - 800 V
Voltage - Forward (Vf) (Max) @ If	1 V	1 - 1.7 V

DIODE GEN PURP 100V 1A DO41

Part	Voltage - Forward (Vf) (Max) @ If	Technology	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Voltage - DC Reverse (Vr) (Max) [Max]	Current - Reverse Leakage @ Vr	Mounting Type	Reverse Recovery Time (trr)	Current - Average Rectified (Io)	Speed	Supplier Device Package	Capacitance @ Vr, F	Package / Case
NTE Electronics, Inc UF4002	1 V	Standard	150 °C	-65 C	100 V	10 µA	Through Hole	50 ns	1 A	200 mA, 500 ns	DO-41	17 pF	Axial, DO-204AL, DO-41
NTE Electronics, Inc UF4006	1.7 V	Standard	150 °C	-65 C	800 V	10 µA	Through Hole	75 ns	1 A	200 mA, 500 ns	DO-41	17 pF	Axial, DO-204AL, DO-41
NTE Electronics, Inc UF4005	1.7 V	Standard	150 °C	-65 C	600 V	10 µA	Through Hole	75 ns	1 A	200 mA, 500 ns	DO-41	17 pF	Axial, DO-204AL, DO-41
NTE Electronics, Inc UF4004	1 V	Standard	150 °C	-65 C	400 V	10 µA	Through Hole	50 ns	1 A	200 mA, 500 ns	DO-41	17 pF	Axial, DO-204AL, DO-41

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Diode 100 V 1A Through Hole DO-41
