DML-10-A-V-T-TSMT-T/R
ActiveAdam Tech
CONN HEADER SMD 10POS 3MM
Deep-Dive with AI
Search across all available documentation for this part.

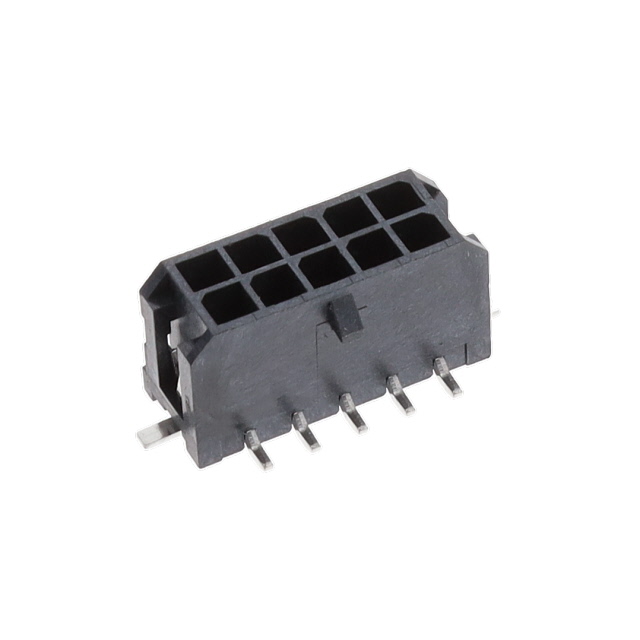

DML-10-A-V-T-TSMT-T/R
ActiveAdam Tech
CONN HEADER SMD 10POS 3MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DML-10-A-V-T-TSMT-T/R |
|---|---|
| Connector Type | Header |
| Contact Finish - Post | Tin |
| Contact Material | Brass |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating (Amps) | 5 A |
| Fastening Type | Locking Ramp |
| Features | Solder Retention |
| Insulation Color | Black |
| Insulation Height [z] | 9.91 mm |
| Insulation Height [z] | 0.39 in |
| Insulation Material | Thermoplastic |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Surface Mount |
| Number of Positions | 10 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -25 °C |
| Pitch - Mating | 0.118 in |
| Pitch - Mating | 3 mm |
| Row Spacing - Mating | 3 mm |
| Row Spacing - Mating | 0.118 in |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
| Voltage Rating | 250 VAC |
DML-10 Series
| Part | Row Spacing - Mating | Row Spacing - Mating | Insulation Color | Voltage Rating | Insulation Material | Current Rating (Amps) | Termination | Shrouding | Operating Temperature [Min] | Operating Temperature [Max] | Pitch - Mating | Pitch - Mating | Number of Positions | Contact Finish - Post | Features | Contact Type | Insulation Height [z] | Insulation Height [z] | Contact Material | Contact Shape | Connector Type | Number of Positions Loaded | Number of Rows | Mounting Type | Material Flammability Rating | Style | Fastening Type | Insulation Height | Insulation Height | Contact Length - Post [x] | Contact Length - Post [x] | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Adam Tech | 3 mm | 0.118 in | Black | 250 VAC | Thermoplastic | 5 A | Solder | Shrouded - 4 Wall | -25 °C | 105 ░C | 0.118 in | 3 mm | 10 | Tin | Solder Retention | Male Pin | 9.91 mm | 0.39 in | Brass | Square | Header | All | 2 | Surface Mount | UL94 V-0 | Board to Cable/Wire | Locking Ramp | |||||
Adam Tech | 3 mm | 0.118 in | Natural | 250 VAC | Thermoplastic | 5 A | Solder | Shrouded - 4 Wall | -25 °C | 85 °C | 0.118 in | 3 mm | 10 | Tin | Solder Retention | Male Pin | Brass | Square | Header | All | 2 | Surface Mount Right Angle | UL94 V-0 | Board to Cable/Wire | Locking Ramp | 0.289 " | 7.34 mm | |||||
Adam Tech | 3 mm | 0.118 in | Black | 250 VDC | Thermoplastic | Solder | Shrouded - 4 Wall | 0.118 in | 3 mm | 10 | Tin | Male Pin | Brass | Square | Header | All | 2 | Through Hole Right Angle | UL94 V-0 | Board to Cable/Wire | Locking Ramp | 0.27 " | 6.86 mm | 3.18 mm | 0.125 in | Varies by Wire Gauge | ||||||
Adam Tech | 3 mm | 0.118 in | Black | 250 VDC | Thermoplastic | Kinked Pin Solder | Shrouded - 4 Wall | -45 °C | 125 °C | 0.118 in | 3 mm | 10 | Tin | Board Guide | Male Pin | 9.91 mm | 0.39 in | Brass | Square | Header | All | 2 | Through Hole | UL94 V-0 | Board to Cable/Wire | Locking Ramp | 3.18 mm | 0.125 in | Varies by Wire Gauge |
