P50LE-080P1-R1-DA

Active

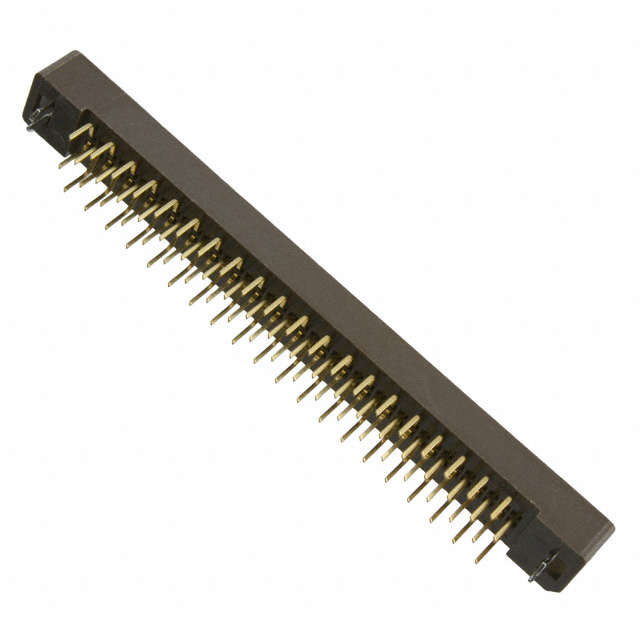

3M PAK 50 LOW PROFILE PLUG, P50LE SERIES, P50LE-080P1-R1-DA

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsInterconnect Mating Guide

P50LE-080P1-R1-DA

Active

3M PAK 50 LOW PROFILE PLUG, P50LE SERIES, P50LE-080P1-R1-DA

Deep-Dive with AI

DocumentsInterconnect Mating Guide

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 9.26
		10	$ 8.33
		25	$ 7.85
		50	$ 7.65
		203	$ 7.45
		406	$ 6.64
		609	$ 6.24
		1015	$ 5.51
Newark	Each	100	$ 8.66
		250	$ 7.93
		500	$ 7.37
		1000	$ 6.93

Description

General part information

P50LE Series

Connector Header Through Hole 80 position 0.050" (1.27mm)

Documents

Technical documentation and resources

Interconnect Mating Guide

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	P50LE-080P1-R1-DA	P50LE Series

Connector Type	Plug	Plug
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Gold	Tin, Gold
Contact Finish Thickness - Mating	Flash	Flash
Contact Finish Thickness - Mating	-	2 µin
Contact Finish Thickness - Mating	-	0.051 µm
Contact Finish Thickness - Post	Flash	Flash
Contact Finish Thickness - Post	-	2.03 µm
Contact Finish Thickness - Post	-	80 µin
Contact Length - Post	0.118 in	0.118 in
Contact Length - Post	3 mm	3 mm
Contact Material	Phosphor Bronze	Phosphor Bronze
Contact Type	Center Strip Contact	Center Strip Contact
Current Rating (Amps)	0.5 A	0.5 A
Fastening Type	Latch Holder	Latch Holder
Features	-	Board Guide
Insulation Color	Brown	Brown
Insulation Height	0.197 in	0.197 in
Insulation Height	5 mm	5 mm
Insulation Height	-	7 mm
Insulation Height	-	0.276 in
Insulation Material	Polyphenylene Sulfide (PPS), Glass Filled	Polyphenylene Sulfide (PPS), Polyphenylene Sulfide (PPS), Glass Filled
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole, Through Hole, Right Angle, Surface Mount
Number of Positions	80	20 - 100
Number of Positions Loaded	All	All
Number of Rows	2	2
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-55 °C	-55 °C
Pitch - Mating	0.05 in	0.05 in
Pitch - Mating	1.27 mm	1.27 mm
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall
Style	Board to Cable/Wire	Board to Cable/Wire
Termination	Solder	Solder

P50LE Series

CONN HEADER VERT 68POS 1.27MM

Part	Fastening Type	Shrouding	Contact Material	Insulation Color	Pitch - Mating	Pitch - Mating	Contact Finish - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Termination	Mounting Type	Insulation Material	Number of Positions	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish - Mating	Current Rating (Amps)	Material Flammability Rating	Insulation Height	Insulation Height	Contact Length - Post	Contact Length - Post	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Style	Contact Type	Number of Rows	Number of Positions Loaded	Contact Finish Thickness - Post	Contact Finish Thickness - Mating	Insulation Height [z]	Insulation Height [z]	Features
3M P50LE-068P1-R1-TGF	Latch Holder	Shrouded - 4 Wall	Phosphor Bronze	Brown	0.05 in	1.27 mm	Tin	2 µin	0.051 µm	Solder	Through Hole	Polyphenylene Sulfide (PPS)	68	2.03 µm	80 µin	Gold	0.5 A	UL94 V-0	0.197 in	5 mm	0.118 in	3 mm	Plug	85 °C	-55 °C	Board to Cable/Wire	Center Strip Contact	2	All
3M P50LE-050P1-R1-DA	Latch Holder	Shrouded - 4 Wall	Phosphor Bronze	Brown	0.05 in	1.27 mm	Gold			Solder	Through Hole	Polyphenylene Sulfide (PPS), Glass Filled	50			Gold	0.5 A	UL94 V-0	0.197 in	5 mm	0.118 in	3 mm	Plug	85 °C	-55 °C	Board to Cable/Wire	Center Strip Contact	2	All	Flash	Flash
3M P50LE-050P1-RR1-TGF	Latch Holder	Shrouded - 4 Wall	Phosphor Bronze	Brown	0.05 in	1.27 mm	Tin	2 µin	0.051 µm	Solder	Through Hole, Right Angle	Polyphenylene Sulfide (PPS)	50	2.03 µm	80 µin	Gold	0.5 A	UL94 V-0			0.118 in	3 mm	Plug	85 °C	-55 °C	Board to Cable/Wire	Center Strip Contact	2	All			7 mm	0.276 in
3M P50LE-030P1-RR1-DA	Latch Holder	Shrouded - 4 Wall	Phosphor Bronze	Brown	0.05 in	1.27 mm	Gold			Solder	Through Hole, Right Angle	Polyphenylene Sulfide (PPS), Glass Filled	30			Gold	0.5 A	UL94 V-0			0.118 in	3 mm	Plug	85 °C	-55 °C	Board to Cable/Wire	Center Strip Contact	2	All	Flash	Flash	7 mm	0.276 in
3M P50LE-068P1-SML-DA	Latch Holder	Shrouded - 4 Wall	Phosphor Bronze	Brown	0.05 in	1.27 mm	Gold			Solder	Surface Mount	Polyphenylene Sulfide (PPS), Glass Filled	68			Gold	0.5 A	UL94 V-0	0.197 in	5 mm			Plug	85 °C	-55 °C	Board to Cable/Wire	Center Strip Contact	2	All	Flash	Flash			Board Guide
3M P50LE-100P1-R1-DA	Latch Holder	Shrouded - 4 Wall	Phosphor Bronze	Brown	0.05 in	1.27 mm	Gold			Solder	Through Hole	Polyphenylene Sulfide (PPS), Glass Filled	100			Gold	0.5 A	UL94 V-0	0.197 in	5 mm	0.118 in	3 mm	Plug	85 °C	-55 °C	Board to Cable/Wire	Center Strip Contact	2	All	Flash	Flash
3M P50LE-080P1-RR1-DA	Latch Holder	Shrouded - 4 Wall	Phosphor Bronze	Brown	0.05 in	1.27 mm	Gold			Solder	Through Hole, Right Angle	Polyphenylene Sulfide (PPS), Glass Filled	80			Gold	0.5 A	UL94 V-0			0.118 in	3 mm	Plug	85 °C	-55 °C	Board to Cable/Wire	Center Strip Contact	2	All	Flash	Flash	7 mm	0.276 in
3M P50LE-080P1-R1-DA	Latch Holder	Shrouded - 4 Wall	Phosphor Bronze	Brown	0.05 in	1.27 mm	Gold			Solder	Through Hole	Polyphenylene Sulfide (PPS), Glass Filled	80			Gold	0.5 A	UL94 V-0	0.197 in	5 mm	0.118 in	3 mm	Plug	85 °C	-55 °C	Board to Cable/Wire	Center Strip Contact	2	All	Flash	Flash
3M P50LE-080P1-RR1-TGF	Latch Holder	Shrouded - 4 Wall	Phosphor Bronze	Brown	0.05 in	1.27 mm	Tin	2 µin	0.051 µm	Solder	Through Hole, Right Angle	Polyphenylene Sulfide (PPS)	80	2.03 µm	80 µin	Gold	0.5 A	UL94 V-0			0.118 in	3 mm	Plug	85 °C	-55 °C	Board to Cable/Wire	Center Strip Contact	2	All			7 mm	0.276 in
3M P50LE-030P1-R1-DA	Latch Holder	Shrouded - 4 Wall	Phosphor Bronze	Brown	0.05 in	1.27 mm	Gold			Solder	Through Hole	Polyphenylene Sulfide (PPS), Glass Filled	30			Gold	0.5 A	UL94 V-0	0.197 in	5 mm	0.118 in	3 mm	Plug	85 °C	-55 °C	Board to Cable/Wire	Center Strip Contact	2	All	Flash	Flash
