R6-32X7/16 2701

Active

APM HEXSEAL

MACHINE SCREW PAN PHILLIPS 6-32

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

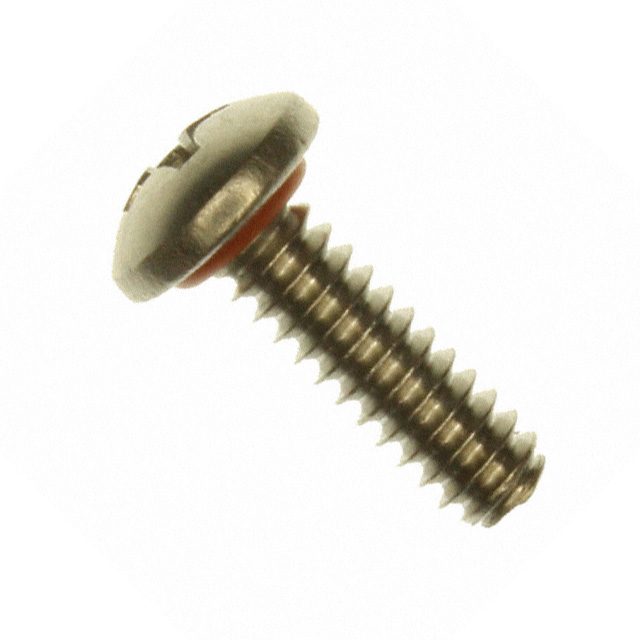

R6-32X7/16 2701

Active

APM HEXSEAL

MACHINE SCREW PAN PHILLIPS 6-32

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	250	$ 0.42

Description

General part information

R6-32 Series

#6-32 Pan Head Machine Screw Phillips Drive Stainless Steel

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	R6-32X7/16 2701	R6-32 Series

Drive Type	Phillips	Phillips
Features	Self Sealing	Self Sealing
Head Diameter [diameter]	0.294 in	0.294 in
Head Diameter [diameter]	7.47 mm	7.47 mm
Head Height [z]	0.097 in	0.097 in
Head Height [z]	2.46 mm	2.46 mm
Length - Below Head	7/16	7/16, 1/2
Length - Below Head	0.438 "	0.25 - 1 "
Length - Below Head	11.13 mm	0.375 - 25.4 mm
Length - Below Head	-	0.313 - 0.875 in
Length - Below Head	-	5 in
Length - Below Head	-	7.95 mm
Length - Below Head	-	0.25 - 22.23 "
Length - Overall	-	8.81 - 24.7 mm
Length - Overall	-	0.41 - 0.972 in
Length - Overall [x]	13.59 mm	11.99 - 27.86 mm
Length - Overall [x]	0.535 in	0.347 - 1.097 in
Material	Stainless Steel	Stainless Steel
Screw Head Type	Pan Head	Pan Head
Thread Size	#6-32	#6-32
Type	Machine Screw	Machine Screw

R6-32 Series

PHILLIP PAN HEAD SEEL SCREW WITH SILICON "O" RING

Part	Type	Head Height [z]	Head Height [z]	Head Diameter [diameter]	Head Diameter [diameter]	Thread Size	Screw Head Type	Material	Length - Below Head [x]	Length - Below Head [x]	Length - Below Head [x]	Features	Drive Type	Length - Overall	Length - Overall	Length - Overall [x]	Length - Below Head	Length - Below Head	Length - Below Head	Length - Overall [x]	Length - Below Head
APM HEXSEAL R6-32X5/16 2701	Machine Screw	0.097 in	2.46 mm	0.294 in	7.47 mm	#6-32	Pan Head	Stainless Steel	0.313 in	5 in	7.95 mm	Self Sealing	Phillips	10.41 mm	0.41 in
APM HEXSEAL R6-32X5/162701	Machine Screw			0.294 in	7.47 mm	#6-32	Pan Head		0.313 in	5 in	7.95 mm	Self Sealing	Phillips
APM HEXSEAL R6-32X3/4 2701	Machine Screw	0.097 in	2.46 mm	0.294 in	7.47 mm	#6-32	Pan Head	Stainless Steel				Self Sealing	Phillips	21.51 mm		0.847 in	0.75 "	19.05 mm	0.75 "
APM HEXSEAL R6-32X3/8 2701	Machine Screw	0.097 in	2.46 mm	0.294 in	7.47 mm	#6-32	Pan Head	Stainless Steel				Self Sealing	Phillips			0.472 in	9.53 mm	0.375 "	0.375 "	11.99 mm
APM HEXSEAL R6-32X5/8 2701	Machine Screw	0.097 in	2.46 mm	0.294 in	7.47 mm	#6-32	Pan Head	Stainless Steel				Self Sealing	Phillips			0.722 in	0.625 in	15.88 mm	0.625 in	18.34 mm
APM HEXSEAL R6-32X7/16 2701	Machine Screw	0.097 in	2.46 mm	0.294 in	7.47 mm	#6-32	Pan Head	Stainless Steel				Self Sealing	Phillips			0.535 in		11.13 mm	0.438 "	13.59 mm	7/16
APM HEXSEAL R6-32X7/8 2701	Machine Screw	0.097 in	2.46 mm	0.294 in	7.47 mm	#6-32	Pan Head	Stainless Steel	0.875 in			Self Sealing	Phillips	24.7 mm	0.972 in		22.23 mm	0.875 in
APM HEXSEAL R6-32X1/2 2701	Machine Screw	0.097 in	2.46 mm	0.294 in	7.47 mm	#6-32	Pan Head	Stainless Steel				Self Sealing	Phillips			0.597 in		12.7 mm	0.5 in	15.16 mm	1/2
APM HEXSEAL R6-32X1 2701	Machine Screw	0.097 in	2.46 mm	0.294 in	7.47 mm	#6-32	Pan Head	Stainless Steel				Self Sealing	Phillips			1.097 in		25.4 mm	1 in	27.86 mm
APM HEXSEAL R6-32X9/16 2701	Machine Screw	0.097 in	2.46 mm	0.294 in	7.47 mm	#6-32	Pan Head	Stainless Steel				Self Sealing	Phillips			0.66 in	0.5625 in	14.3 mm	0.563 in	16.76 mm
