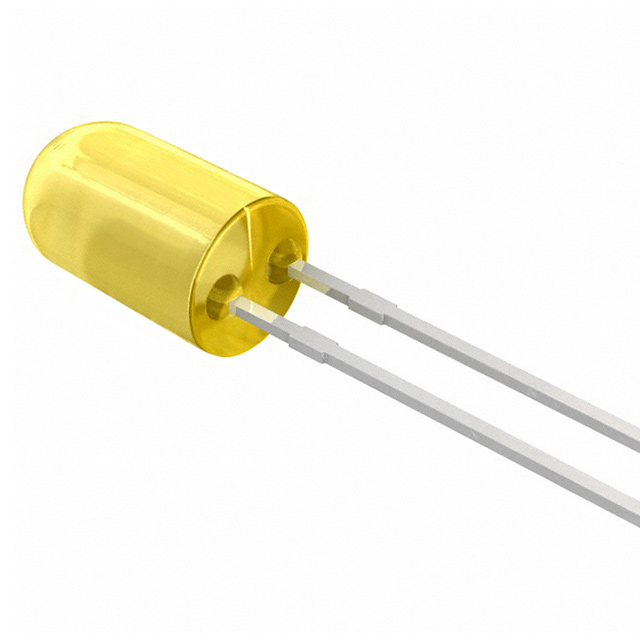

Specification	WP57YYD

Color	Yellow
Configuration	Standard
Current - Test	20 mA
Height (Max)	8.6 mm
Lens Color	Yellow
Lens Size	5 mm
Lens Size (Code)	T-1 3/4
Lens Style	Round, Domed Top
Lens Transparency	Diffused
Millicandela Rating	12 mcd
Mounting Type	Through Hole
Package / Case	Radial
Package Name	T-1 3/4
Size / Dimension Diameter	5 mm
Viewing Angle	60 °
Voltage - Forward (Vf) (Typ)	2.1 V
Wavelength - Dominant	588 nm
Wavelength - Peak	590 nm

WP57 Series

Part	Lens Size	Lens Size (Code)	Wavelength - Peak Colors	Wavelength - Peak (Red)	Wavelength - Peak (Yellow)	Lens Color	Lens Transparency	Size / Dimension Diameter	Package / Case	Wavelength - Dominant (Secondary)	Wavelength - Dominant (Primary)	Package Name	Voltage - Forward (Vf) (Typ) (Value 2)	Voltage - Forward (Vf) (Typ) (Value 1)	Current - Test (Red)	Current - Test Colors	Current - Test	Color	Configuration	Viewing Angle	Millicandela Rating Colors	Millicandela Rating (Red)	Millicandela Rating (Yellow)	Height (Max)	Mounting Type	Lens Style	Voltage - Forward (Vf) (Typ)	Wavelength - Peak	Millicandela Rating	Wavelength - Dominant	Voltage - Forward (Vf) (Typ) Color	Wavelength - Peak (Green)	Millicandela Rating (Green)	Wavelength - Dominant Color	Wavelength - Dominant (Green)	Wavelength - Dominant (Yellow)	Current - Test (Green)	Wavelength - Dominant (Red)	Voltage - Forward (Vf) (Typ) (Red)	Voltage - Forward (Vf) (Typ) (Green)
Kingbright WP57EYW	5 mm	T-1 3/4	Red Yellow	627 nm	590 nm	White	Diffused	5 mm	Radial	588 nm	617 nm	T-1 3/4	2.1 V	2 V	20 mA	Red Yellow	20 mA	Red Yellow	Bidirectional	60 °	Red Yellow	14 mcd	10 mcd	8.6 mm	Through Hole	Domed Top Round
Kingbright WP57GGD	5 mm	T-1 3/4				Green	Diffused	5 mm	Radial			T-1 3/4					20 mA	Green	Standard	60 °				8.6 mm	Through Hole	Domed Top Round	2.2 V	565 nm	20 mcd	568 nm
Kingbright WP57IID	5 mm	T-1 3/4				Red	Diffused	5 mm	Radial			T-1 3/4					20 mA	Red	Standard	60 °				8.6 mm	Through Hole	Domed Top Round	2 V	627 nm	12 mcd	617 nm
Kingbright WP57GYW	5 mm	T-1 3/4	Green Yellow		590 nm	White	Diffused	5 mm	Radial	588 nm	568 nm	T-1 3/4	2.1 V	2.2 V		Green Yellow	20 mA	Green Yellow	Bidirectional	60 °	Green Yellow		10 mcd	8.6 mm	Through Hole	Domed Top Round					Green Yellow	565 nm	30 mcd	Green Yellow	568 nm	588 nm	20 mA
Kingbright WP57YYD	5 mm	T-1 3/4				Yellow	Diffused	5 mm	Radial			T-1 3/4					20 mA	Yellow	Standard	60 °				8.6 mm	Through Hole	Domed Top Round	2.1 V	590 nm	12 mcd	588 nm
Kingbright WP57EGW	5 mm	T-1 3/4	Green Red	627 nm		White	Diffused	5 mm	Radial			T-1 3/4			20 mA	Green Red		Green Red	Bidirectional	30 °	Green Red	14 mcd		8.6 mm	Through Hole	Domed Top Round					Green Red	565 nm	30 mcd	Green Red	568 nm		20 mA	617 nm	2 V	2.2 V
