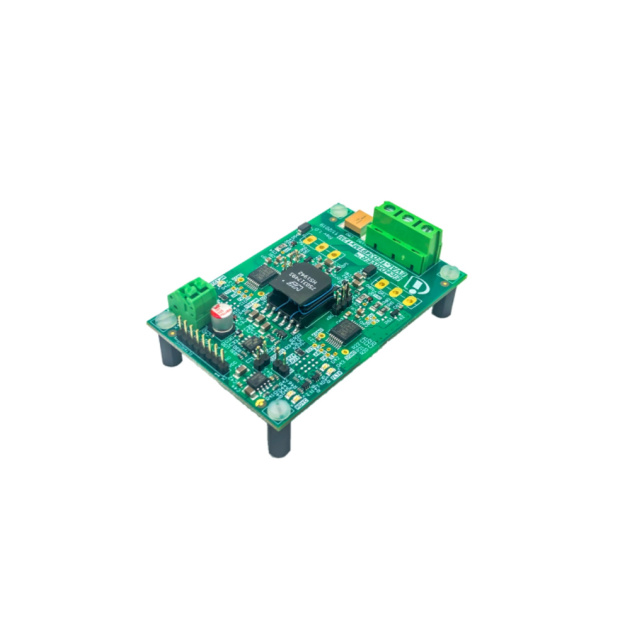

EVAL1ED3491MX12MTOBO1

Active

Infineon Technologies

THE EVAL-1ED3491MX12M IS AN EVALUATION BOARD FOR THE 1ED3491MX12M GATE DRIVER IC

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

EVAL1ED3491MX12MTOBO1

Active

Infineon Technologies

THE EVAL-1ED3491MX12M IS AN EVALUATION BOARD FOR THE 1ED3491MX12M GATE DRIVER IC

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	EVAL1ED3491MX12MTOBO1

Contents	Board(s)
Embedded	Yes, MCU
Function	Gate Driver
Primary Attributes	1-Channel (Single)
Secondary Attributes	On-Board LEDs
Supplied Contents	Board(s)
Type	Power Management

EVAL1ED3491 Series

Part	Embedded	Contents	Type	Primary Attributes	Function	Supplied Contents	Secondary Attributes
Infineon Technologies EVAL1ED3491MX12MTOBO1	Yes MCU	Board(s)	Power Management	1-Channel (Single)	Gate Driver	Board(s)	On-Board LEDs

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Arrow	N/A	1	$ 78.35
Digikey	Box	1	$ 79.87
Newark	Each	1	$ 81.97

Description

General part information

EVAL1ED3491 Series

The EVAL-1ED3491MX12M is in half-bridge configuration with two gate driver ICs (1ED3491MU12M) to drive power switches such asIGBTsandSiC MOSFETs. The switch type can be freely chosen. The board has a size of 85 x 55 x 15 mm without any power switch assembled. TRENCHSTOP™ IGBTIKW40N120H3or CoolSiC™ MOSFETIMW120R030M1His recommended. This board is best suited for double pulse testing and evaluation. The low voltage supply interface can be controlled by a pulse generator, a microcontroller or any other suitable digital circuit. The evaluation board has a power supply for the primary and secondary sides implemented.
