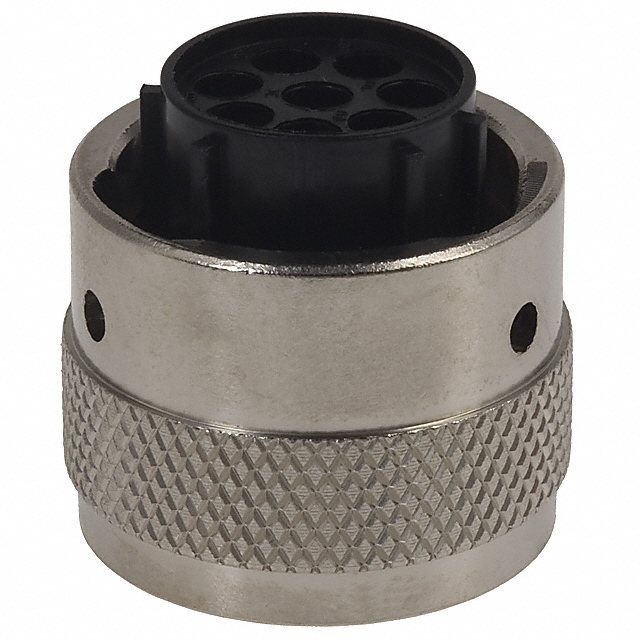

UTG612-8SN

Active

Souriau-Sunbank by Eaton

CONN PLUG HSG FMALE 8POS INLINE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

UTG612-8SN

Active

Souriau-Sunbank by Eaton

CONN PLUG HSG FMALE 8POS INLINE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	UTG612-8SN

Connector Type	Plug Housing
Contact Shape	Circular
Contact Size	16
Contact Type	Crimp
Fastening Type	Bayonet Lock
Features	Coupling Nut
Housing Color	Silver
Insert Material	Thermoplastic, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	8
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	N
Shell Finish	Nickel
Shell Material	Brass
Shell Size - Insert	12-8
Shielding	Unshielded
Type	For Female Sockets

UTG61 Series

Part	Orientation	Material Flammability Rating	Note	Number of Positions	Housing Color	Connector Type	Insert Material	Mounting Type	Shell Finish	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Shell Size - Insert	Type	Shielding	Features	Contact Shape	Shell Material	Contact Size	Contact Size	Color	Accessory Type	Shell Size - Insert	Material	For Use With/Related Products	Shell Size - Insert [Min]	Shell Size - Insert [Max]
Souriau-Sunbank by Eaton UTG6148SN	N	UL94 V-0	Contacts Not Included	8	Silver	Plug Housing	Thermoplastic Glass Filled	Free Hanging (In-Line)	Nickel	Crimp	-55 °C	125 °C	Bayonet Lock	14-8	For Female Sockets	Unshielded	Coupling Nut	Circular	Brass	12 (4) 16 (4)
Souriau-Sunbank by Eaton UTG614-12PN	N	UL94 V-0	Contacts Not Included	12	Silver	Plug Housing	Thermoplastic Glass Filled	Free Hanging (In-Line)	Nickel	Crimp	-55 °C	125 °C	Bayonet Lock	14-12	For Male Pins	Unshielded	Coupling Nut	Circular	Brass		16
Souriau-Sunbank by Eaton UTG610-4PN	N	UL94 V-0	Contacts Not Included	4	Silver	Plug Housing	Thermoplastic Glass Filled	Free Hanging (In-Line)	Nickel	Crimp	-55 °C	125 °C	Bayonet Lock	10-4	For Male Pins	Unshielded	Coupling Nut	Circular	Brass		16
Souriau-Sunbank by Eaton UTG614-12SN	N	UL94 V-0	Contacts Not Included	12	Silver	Plug Housing	Thermoplastic Glass Filled	Free Hanging (In-Line)	Nickel	Crimp	-55 °C	125 °C	Bayonet Lock	14-12	For Female Sockets	Unshielded	Coupling Nut	Circular	Brass		16
Souriau-Sunbank by Eaton UTG618DCG																	Dust Tight Metal Chain Waterproof					Black	Cap (Cover) Dust	18	Plastic	Trim Trio® UTG Trim Trio® UTO Trim Trio® UTOW Trim Trio® UTP Plugs
Souriau-Sunbank by Eaton UTG616-19SN	N	UL94 V-0	Contacts Not Included	19	Silver	Plug Housing	Thermoplastic Glass Filled	Free Hanging (In-Line)	Nickel	Crimp	-55 °C	125 °C	Bayonet Lock		For Female Sockets	Unshielded	Coupling Nut	Circular	Brass		16						16	19
Souriau-Sunbank by Eaton UTG614DCG																	Dust Tight Metal Chain Waterproof					Black	Cap (Cover) Dust	14	Plastic	Trim Trio® UTG Trim Trio® UTO Trim Trio® UTOW Trim Trio® UTP Plugs
Souriau-Sunbank by Eaton UTG612DCG																	Dust Tight Metal Chain Waterproof					Black	Cap (Cover) Dust	12	Plastic	Trim Trio® UTG Trim Trio® UTO Trim Trio® UTOW Trim Trio® UTP Plugs
Souriau-Sunbank by Eaton UTG612-8SN	N	UL94 V-0	Contacts Not Included	8	Silver	Plug Housing	Thermoplastic Glass Filled	Free Hanging (In-Line)	Nickel	Crimp	-55 °C	125 °C	Bayonet Lock	12-8	For Female Sockets	Unshielded	Coupling Nut	Circular	Brass		16
Souriau-Sunbank by Eaton UTG6148PN	N	UL94 V-0	Contacts Not Included	8	Silver	Plug Housing	Thermoplastic Glass Filled	Free Hanging (In-Line)	Nickel	Crimp	-55 °C	125 °C	Bayonet Lock	14-8	For Male Pins	Unshielded	Coupling Nut	Circular	Brass	12 (4) 16 (4)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 17.67
		10	$ 15.31
		25	$ 14.51
		50	$ 14.30
		100	$ 12.62
		250	$ 11.78
		500	$ 11.53

Description

General part information

UTG61 Series

8 Position Circular Connector Plug Housing Free Hanging (In-Line) Coupling Nut
