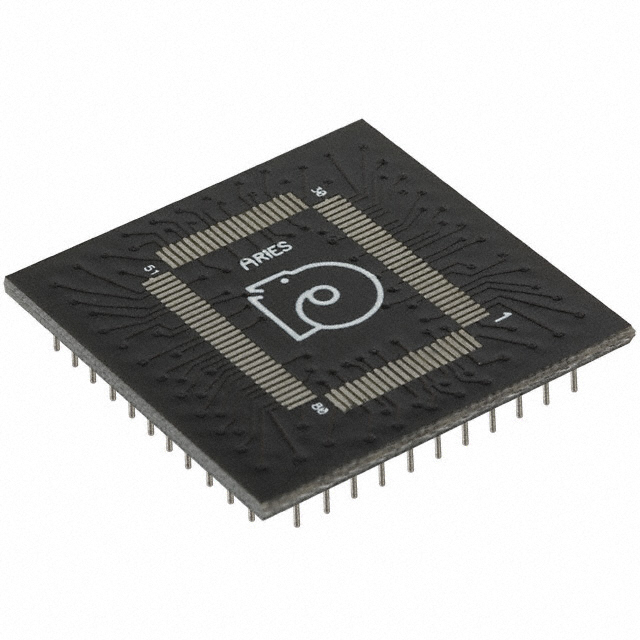

96-208M50

Active

Aries Electronics

SOCKET ADAPTER QFP TO 208PGA

Search across all available documentation for this part.

Active

Aries Electronics

SOCKET ADAPTER QFP TO 208PGA

Technical Specifications

Parameters and characteristics for this part

Specification	96-208M50

Board Material	FR4 Epoxy Glass
Contact Finish - Post	Tin-Lead
Contact Finish Thickness - Post	200 µin
Contact Finish Thickness - Post	5.08 µm
Contact Material - Mating	Copper
Contact Material - Post [custom]	Brass
Convert From (Adapter End)	QFP
Convert To (Adapter End)	PGA
Mounting Type	Through Hole
Number of Pins	208
Pitch - Mating	0.02 in
Pitch - Mating	0.5 mm
Pitch - Post	2.54 mm
Pitch - Post	0.1 in
Termination	Solder
Termination Post Length	3.18 mm
Termination Post Length	0.125 in

SOCKET ADAPTER QFP TO 208PGA

Part	Pitch - Mating	Pitch - Mating	Convert From (Adapter End)	Termination	Termination Post Length	Termination Post Length	Mounting Type	Pitch - Post	Pitch - Post	Contact Material - Post [custom]	Board Material	Contact Finish - Post	Number of Pins	Convert To (Adapter End)	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Material - Mating
Aries Electronics 96-208M50	0.02 in	0.5 mm	QFP	Solder	3.18 mm	0.125 in	Through Hole	2.54 mm	0.1 in	Brass	FR4 Epoxy Glass	Tin-Lead	208	PGA	200 µin	5.08 µm	Copper

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

IC Socket Adapter QFP To PGA Through Hole
