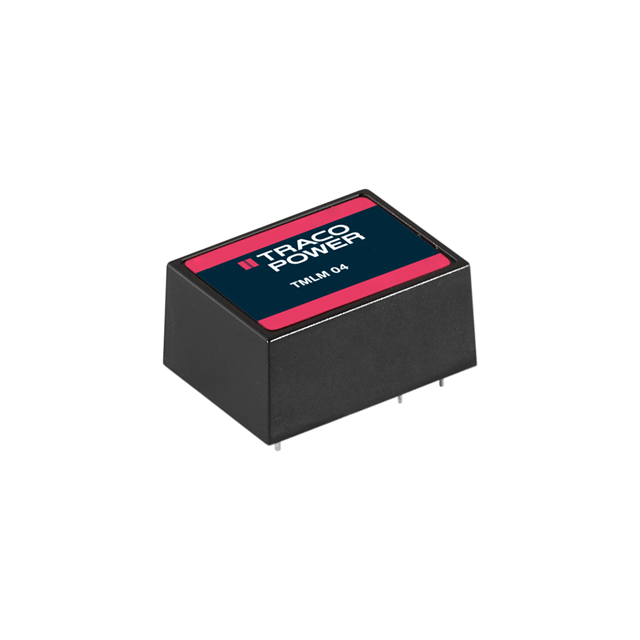

TMLM 04103
ActiveTraco Power
AC/DC CONVERTER 3.3V 4W
TMLM 04103
ActiveTraco Power
AC/DC CONVERTER 3.3V 4W
Description
General part information
TMLM 04 Series
Enclosed AC DC Converters 1 Output 3.3V 1.2A 90 ~ 264 VAC, 120 ~ 370 VDC Input
Technical Specifications
Parameters and characteristics for this part
| Specification | TMLM 04103 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | cURus, CE |
| Current - Output (Max) | 1.2 A |
| Efficiency | 67 % |
| Features | Universal Input |
| Line Regulation | 0.3 % |
| Load Regulation (Percent) | 1 % |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | -25 °C |
| Package / Case | 7-DIP Module |
| Power (Watts) | 4 W |
| Size / Dimension Height | 0.67 in |
| Size / Dimension Length | 1.44 in |
| Size / Dimension Width | 1.06 in |
| Type | Enclosed |
| Voltage - Input (AC) Maximum | 264 V |
| Voltage - Input (AC) Minimum | 90 V |
| Voltage - Input (DC) Maximum | 370 V |
| Voltage - Input (DC) Minimum | 120 V |
| Voltage - Output 1 | 3.3 V |
