DML-24-A-V-T-A

Active

Adam Tech

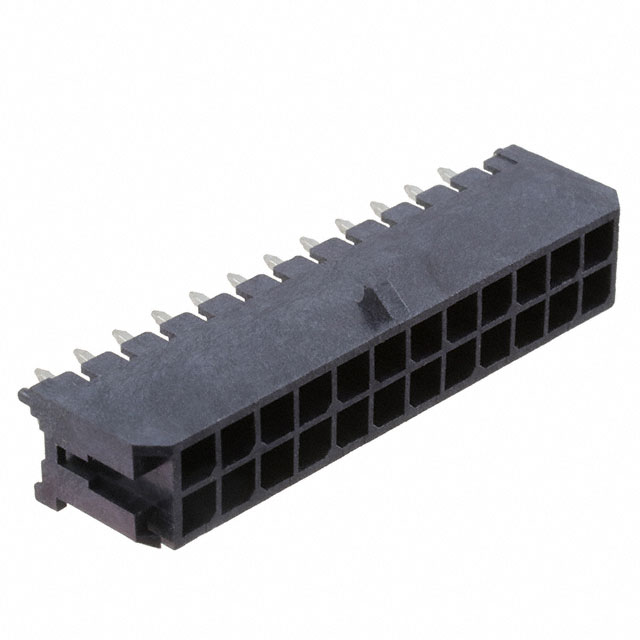

CONN HEADER VERT 24POS 3MM

Search across all available documentation for this part.

Active

Adam Tech

CONN HEADER VERT 24POS 3MM

Technical Specifications

Parameters and characteristics for this part

Specification	DML-24-A-V-T-A

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Post [x]	3.18 mm
Contact Length - Post [x]	0.125 in
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	Varies by Wire Gauge
Fastening Type	Locking Ramp
Features	Board Guide
Insulation Color	Black
Insulation Height [z]	9.91 mm
Insulation Height [z]	0.39 in
Insulation Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	24
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-45 °C
Pitch - Mating	0.118 in
Pitch - Mating	3 mm
Row Spacing - Mating	3 mm
Row Spacing - Mating	0.118 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Kinked Pin, Solder
Voltage Rating	250 VDC

Part	Number of Positions Loaded	Fastening Type	Voltage Rating	Insulation Material	Contact Finish - Post	Contact Shape	Mounting Type	Shrouding	Connector Type	Current Rating (Amps)	Pitch - Mating	Pitch - Mating	Contact Type	Insulation Height [z]	Insulation Height [z]	Material Flammability Rating	Insulation Color	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Row Spacing - Mating	Row Spacing - Mating	Number of Positions	Termination	Style	Number of Rows	Current Rating (Amps)	Features	Contact Length - Post [x]	Contact Length - Post [x]
Adam Tech DML-24-A-V-T-SMT-BL-PP-T/R	All	Locking Ramp	250 VAC	Thermoplastic	Tin	Square	Surface Mount	Shrouded - 4 Wall	Header	5 A	0.118 in	3 mm	Male Pin	9.91 mm	0.39 in	UL94 V-0	Black	Brass	-25 °C	85 °C	3 mm	0.118 in	24	Solder	Board to Cable/Wire	2
Adam Tech DML-24-A-V-T-A	All	Locking Ramp	250 VDC	Thermoplastic	Tin	Square	Through Hole	Shrouded - 4 Wall	Header		0.118 in	3 mm	Male Pin	9.91 mm	0.39 in	UL94 V-0	Black	Brass	-45 °C	125 °C	3 mm	0.118 in	24	Kinked Pin Solder	Board to Cable/Wire	2	Varies by Wire Gauge	Board Guide	3.18 mm	0.125 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
