1939989

Active

Phoenix Contact

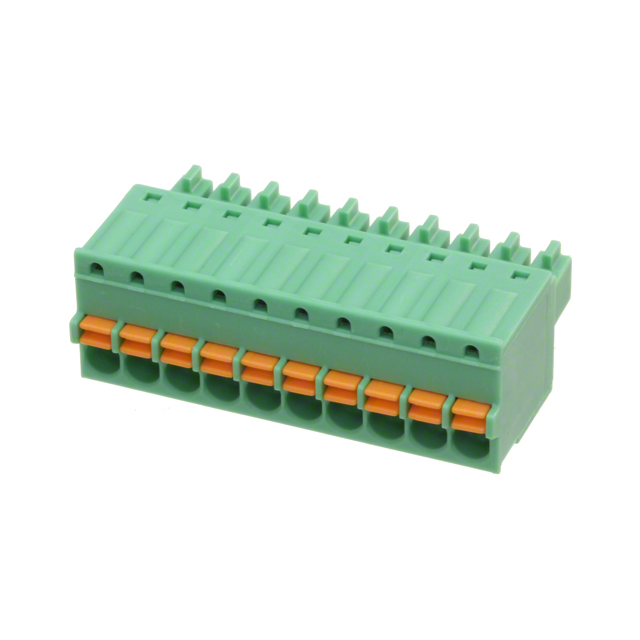

PLUGGABLE TERMINAL BLOCKS 10 POS 3.5MM PITCH PLUG 26-16AWG SPRING

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Datasheet

1939989

Active

Phoenix Contact

PLUGGABLE TERMINAL BLOCKS 10 POS 3.5MM PITCH PLUG 26-16AWG SPRING

Deep-Dive with AI

DocumentsDatasheet Datasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 17.46
		10	$ 16.99
		50	$ 15.88
		100	$ 14.61
		250	$ 14.33
Sager	N/A	50	$ 18.69
		100	$ 18.02

Description

General part information

FK-MCP Series

Pluggable Terminal Blocks FK-MCP 1 5/15-ST-3 5-LR

Documents

Technical documentation and resources

Datasheet

Document

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1939989	FK-MCP Series

Color	Green	Green
Contact Mating Finish	Tin	Tin
Current - IEC	8 A	8 A
Current - UL	8 A	8 A
Features	-	Mating Flange, Retention Latches (Non-Wire Side), Ejector Latches
Housing Material	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Insulation Height	-	0.56 in
Insulation Height	-	14.22 mm
Insulation Height [custom]	0.488 in	0.488 in
Insulation Height [custom]	12.4 mm	12.4 mm
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Levels	1	1
Number of Positions	10	7 - 15
Number of Positions	-	16
Pitch [x]	3.5 mm	3.5 - 3.81 mm
Pitch [x]	0.138 in	0.138 - 0.15 in
Positions Per Level	10	3 - 16
Termination Style	Screwless - Push-In Spring	Push-In Spring, Screwless - Leg Spring, Screwless - Push-In Spring
Type	Plug, Female Sockets	Plug, Female Sockets
Voltage - IEC	320 V	320 V
Voltage - UL	300 V	300 - 320 V
Wire Gauge or Range - AWG [Max]	28 AWG	28 AWG
Wire Gauge or Range - AWG [Min]	16 AWG	16 AWG
Wire Gauge or Range - mm˛	-	0.14 mm˛
Wire Gauge or Range - mm˛	-	1.5 mm˛
Wire Gauge or Range - mm² [Max]	1.5 mm²	1.5 mm²
Wire Gauge or Range - mm² [Min]	0.14 mm²	0.14 mm²
Wire Strip Length	9 mm	9 mm

FK-MCP Series

Pluggable Terminal Blocks FK-MCP 1 5/15-ST-3 5-LR

Part	Current - UL	Number of Levels	Voltage - UL	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Contact Mating Finish	Mounting Type	Voltage - IEC	Features	Housing Material	Material Flammability Rating	Insulation Height [custom]	Insulation Height [custom]	Positions Per Level	Color	Pitch [x]	Pitch [x]	Current - IEC	Wire Strip Length	Type	Number of Positions	Termination Style	Wire Gauge or Range - mm˛ [Min]	Wire Gauge or Range - mm˛ [Max]	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Number of Positions	Insulation Height	Insulation Height
Phoenix Contact 1851371	8 A	1	300 V	28 AWG	16 AWG	Tin	Free Hanging (In-Line)	320 V	Mating Flange	Polyamide (PA), Nylon	UL94 V-0	0.488 in	12.4 mm	16	Green	0.15 in	3.81 mm	8 A	9 mm	Plug, Female Sockets	16	Push-In Spring, Screwless - Leg Spring	0.14 mm˛	1.5 mm˛
Phoenix Contact 1940101	8 A	1	300 V	28 AWG	16 AWG	Tin	Free Hanging (In-Line)	320 V	Mating Flange	Polyamide (PA), Nylon	UL94 V-0	0.488 in	12.4 mm	3	Green	0.138 in	3.5 mm	8 A	9 mm	Plug, Female Sockets		Screwless - Push-In Spring			0.14 mm²	1.5 mm²
Phoenix Contact 1939960	8 A	1	300 V	28 AWG	16 AWG	Tin	Free Hanging (In-Line)	320 V		Polyamide (PA), Nylon	UL94 V-0	0.488 in	12.4 mm	7	Green	0.138 in	3.5 mm	8 A	9 mm	Plug, Female Sockets		Screwless - Push-In Spring	0.14 mm˛	1.5 mm˛			7
Phoenix Contact 1817369	8 A	1	320 V	28 AWG	16 AWG	Tin	Free Hanging (In-Line)	320 V	Ejector Latches, Retention Latches (Non-Wire Side)	Polyamide (PA), Nylon	UL94 V-0			15	Green	0.138 in	3.5 mm	8 A	9 mm	Plug, Female Sockets		Screwless - Push-In Spring			0.14 mm²	1.5 mm²	15	0.56 in	14.22 mm
Phoenix Contact 1851342	8 A	1	300 V	28 AWG	16 AWG	Tin	Free Hanging (In-Line)	320 V	Mating Flange	Polyamide (PA), Nylon	UL94 V-0	0.488 in	12.4 mm	13	Green	0.15 in	3.81 mm	8 A	9 mm	Plug, Female Sockets		Push-In Spring, Screwless - Leg Spring	0.14 mm˛	1.5 mm˛			13
Phoenix Contact 1939989	8 A	1	300 V	28 AWG	16 AWG	Tin	Free Hanging (In-Line)	320 V		Polyamide (PA), Nylon	UL94 V-0	0.488 in	12.4 mm	10	Green	0.138 in	3.5 mm	8 A	9 mm	Plug, Female Sockets		Screwless - Push-In Spring			0.14 mm²	1.5 mm²	10
