PT07E-10-6S
ActiveAmphenol Industrial Operations

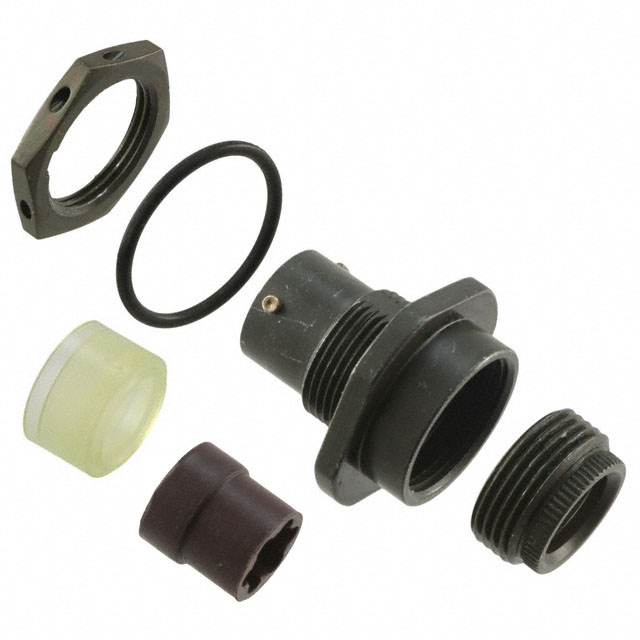

CONN RCPT FMALE 6P GOLD SLDR CUP
Deep-Dive with AI
Search across all available documentation for this part.
PT07E-10-6S
ActiveAmphenol Industrial Operations
CONN RCPT FMALE 6P GOLD SLDR CUP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | PT07E-10-6S | PT07E Series |
|---|---|---|
| Applications | Military, Mass Transit, Instrumentation, Aerospace, Industrial | Military, Mass Transit, Instrumentation, Aerospace, Industrial, Communication Systems |
| Backshell Material, Plating | Olive Drab Cadmium, Aluminum | Olive Drab Cadmium, Aluminum |
| Color | Olive Drab | Olive Drab |
| Connector Type | Receptacle, Female Sockets | Receptacle, Male Pins, Receptacle, Female Sockets |
| Contact Finish - Mating | Gold | Gold |
| Contact Material | Copper Alloy | Copper Alloy |
| Fastening Type | Bayonet Lock | Bayonet Lock |
| Features | Backshell | Backshell |
| Ingress Protection | Environment Sealed | Environment Sealed, Environment Resistant |
| Insert Material | Neoprene | Neoprene |
| Mounting Feature | Bulkhead - Front Side Nut | Bulkhead - Front Side Nut |
| Number of Positions | 6 | 6 - 41 |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Orientation | N | W, N |
| Primary Material | Metal | Metal |
| Qualification | MIL-DTL-26482 Series I | MIL-DTL-26482 Series I |
| Shell Finish | Olive Drab Chromate over Cadmium | Olive Drab Chromate over Cadmium |
| Shell Material | Aluminum | Aluminum |
| Shell Size - Insert | 10-6 | 10-6 |
| Shell Size - Insert | - | 41 |
| Shell Size - Insert | - | 22 |
| Shielding | Unshielded | Unshielded |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 36.08 | |
| 10 | $ 31.59 | |||
| 100 | $ 28.28 | |||
PT07E Series
CONN RCPT MALE 41P GOLD SLDR CUP
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Shell Size - Insert [Max] | Shell Size - Insert [Min] | Connector Type | Color | Qualification | Shell Finish | Contact Finish - Mating | Mounting Feature | Features | Shell Material | Number of Positions | Shielding | Orientation | Fastening Type | Backshell Material, Plating | Ingress Protection | Insert Material | Primary Material | Applications | Contact Material | Shell Size - Insert |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Industrial Operations PT07E-22-41PW | -55 °C | 125 °C | 41 | 22 | Male Pins, Receptacle | Olive Drab | MIL-DTL-26482 Series I | Olive Drab Chromate over Cadmium | Gold | Bulkhead - Front Side Nut | Backshell | Aluminum | 41 | Unshielded | W | Bayonet Lock | Aluminum, Olive Drab Cadmium | Environment Sealed | Neoprene | Metal | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Copper Alloy | |
Amphenol Industrial Operations PT07E-10-6S | -55 °C | 125 °C | Receptacle, Female Sockets | Olive Drab | MIL-DTL-26482 Series I | Olive Drab Chromate over Cadmium | Gold | Bulkhead - Front Side Nut | Backshell | Aluminum | 6 | Unshielded | N | Bayonet Lock | Aluminum, Olive Drab Cadmium | Environment Sealed | Neoprene | Metal | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Copper Alloy | 10-6 | ||
Amphenol Industrial Operations PT07E16-8S-152 | -55 °C | 125 °C | Receptacle, Female Sockets | MIL-DTL-26482 Series I | Gold | Bulkhead - Front Side Nut | 8 | Unshielded | N | Bayonet Lock | Environment Resistant | Neoprene | Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit | Copper Alloy |
Description
General part information
PT07E Series
6 Position Circular Connector Receptacle, Female Sockets Solder Cup
