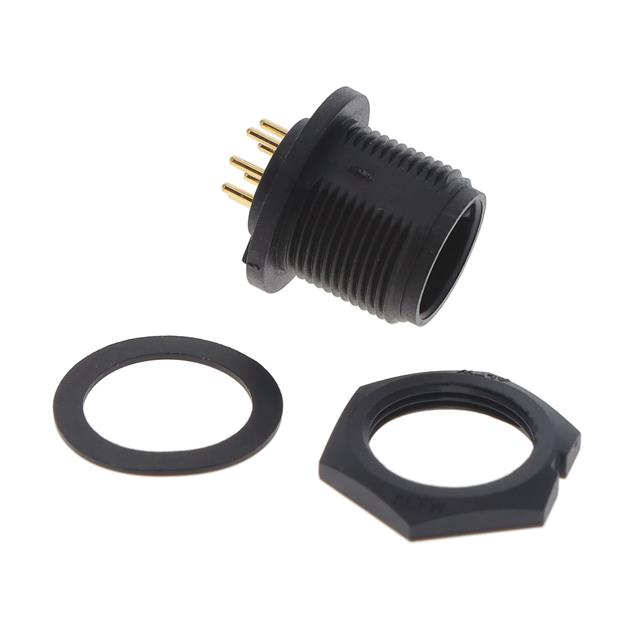

BD-07PMMP-SC7001

Active

Amphenol LTW

CERES, STANDARD SIZE, 5A, 07 PINS, RECEPTACLE, CIRCULAR ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Amphenol LTW

CERES, STANDARD SIZE, 5A, 07 PINS, RECEPTACLE, CIRCULAR ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	BD-07PMMP-SC7001

Color	Black
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	5 A
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polyamide (PA), Nylon, Glass Filled
Mounting Feature	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Panel Mount
Number of Positions	7
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shell Material	Nylon, Glass Filled, Polyamide (PA)
Shell Size - Insert	B
Shielding	Unshielded
Termination	Solder
Voltage Rating	250 VDC

Part	Color	Termination	Ingress Protection	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Feature	Shell Size - Insert	Insert Material	Connector Type	Voltage Rating	Primary Material	Current Rating (Amps)	Shielding	Contact Material	Number of Positions	Shell Material	Contact Finish - Mating	Mounting Type	Orientation
Amphenol LTW BD-07PMMP-SC7001	Black	Solder	IP67 - Dust Tight Waterproof	-40 °C	105 ░C	Bulkhead - Front Side Nut	B	Polyamide (PA) Nylon Glass Filled	Male Pins Receptacle	250 VDC	Plastic	5 A	Unshielded	Copper Alloy	7	Glass Filled Nylon Polyamide (PA)	Gold	Panel Mount Through Hole	Keyed

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

7 Position Circular Connector Receptacle, Male Pins Solder
