962998-1

Active

TE Connectivity AMP Connectors

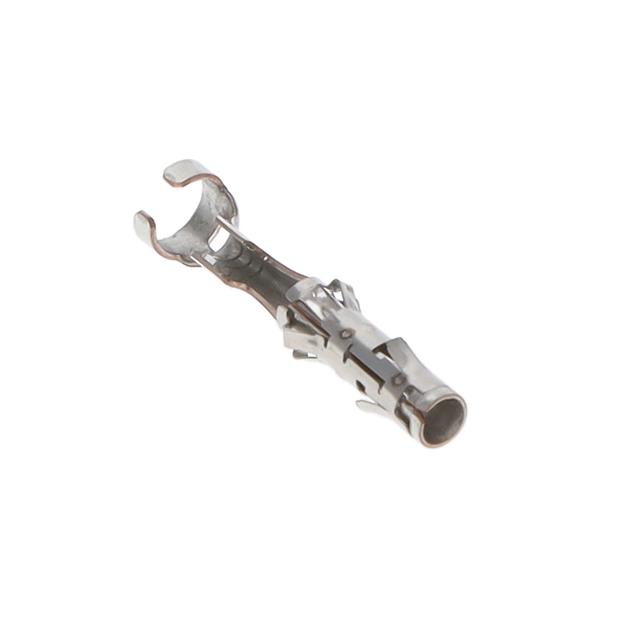

CONTACT SOCKET 17-20AWG CRIMP

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONTACT SOCKET 17-20AWG CRIMP

Technical Specifications

Parameters and characteristics for this part

CONTACT SOCKET 17-20AWG CRIMP

Part	Contact Size	Contact Type	Contact Termination	Wire Gauge or Range - mm˛ [Min]	Wire Gauge or Range - mm˛ [Max]	Termination Finish	Contact Finish Thickness	Contact Finish Thickness	Features	Type	Contact Finish	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Contact Material
TE Connectivity AMP Connectors 962998-1	1.5 mm	Socket	Crimp	0.5 mm˛	1 mm˛	Tin	39.4 Áin	1 Ám	Insulation Support	Power, Stamped	Tin	17 AWG	20 AWG	Copper Alloy

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Socket Contact 17-20 AWG Size 1.5mm Crimp Tin

Technical documentation and resources

No documents available
