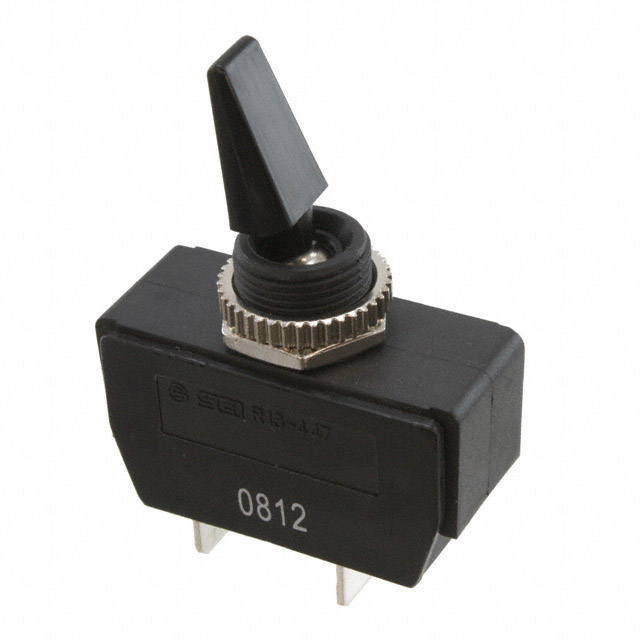

GTS447N301HR

Active

CW Industries

SWITCH TOGGLE SPST-NO 16A 277V

Search across all available documentation for this part.

Active

CW Industries

SWITCH TOGGLE SPST-NO 16A 277V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	GTS447N301HR	GTS447N Series

Actuator Length [x]	17 mm	17 - 17.5 mm
Actuator Type	Flatted	Flatted, Standard Round
Bushing Thread	15/32-32	15/32-32
Circuit	SPST-NO	SPST-NO
Current Rating (Amps)	16 A	16 A
Electrical Life	10000 Cycles	10000 Cycles
Illumination	Non-Illuminated	Non-Illuminated
Ingress Protection	IP56 - Dust Protected, Water Resistant	IP56 - Dust Protected, Water Resistant
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	0 °C	0 °C
Panel Cutout Dimensions [diameter]	12.2 mm	12.2 mm
Switch Function	Off-Mom	Off-Mom
Termination Style	Quick Connect - 0.250" (6.3mm)	Quick Connect - 0.250" (6.3mm)
Voltage Rating - AC	277 V	277 V

SWITCH TOGGLE SPST-NO 16A 277V

Part	Current Rating (Amps)	Ingress Protection	Switch Function	Circuit	Panel Cutout Dimensions [diameter]	Electrical Life	Actuator Type	Actuator Length [x]	Bushing Thread	Termination Style	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating - AC	Illumination
CW Industries GTS447N301HR	16 A	IP56 - Dust Protected, Water Resistant	Off-Mom	SPST-NO	12.2 mm	10000 Cycles	Flatted	17 mm	15/32-32	Quick Connect - 0.250" (6.3mm)	0 °C	85 °C	277 V	Non-Illuminated
CW Industries GTS447N101HR	16 A	IP56 - Dust Protected, Water Resistant	Off-Mom	SPST-NO	12.2 mm	10000 Cycles	Standard Round	17.5 mm	15/32-32	Quick Connect - 0.250" (6.3mm)	0 °C	85 °C	277 V	Non-Illuminated

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1000	$ 3.62

General part information

Toggle Switch SPST-NO Panel Mount
