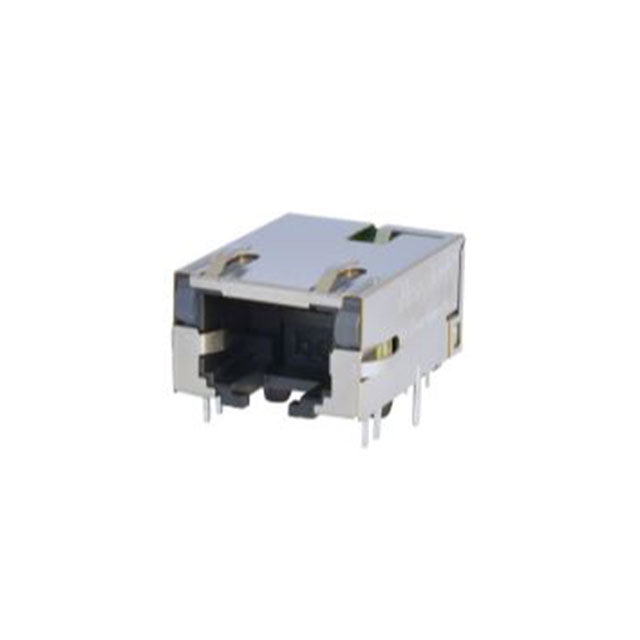

2250337-1

Active

TRP Connector B.V.

CONN JACK 1PORT 10 BASE-T PCB

Search across all available documentation for this part.

Active

TRP Connector B.V.

CONN JACK 1PORT 10 BASE-T PCB

Technical Specifications

Parameters and characteristics for this part

CONN JACK 1PORT 10 BASE-T PCB

Part	Mounting Type	Tab Direction	Shielding	Number of Ports	LED Color	Number of Rows	Contact Finish	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Features	Orientation	Housing Material	Shield Material	Connector Type	Contact Finish Thickness	Contact Finish Thickness	Contact Material	Height Above Board	Height Above Board	Termination
TRP Connector B.V. 2250337-1	Through Hole	Down	Shielded, EMI Finger	1	Green, Yellow - Green	1	Gold	85 °C	-40 °C	10 Base-T, AutoMDIX	Board Guide, Light Pipe	90 °	Polyamide (PA), Nylon	Brass	RJ45	50 µin	1.27 µm	Phosphor Bronze	11.68 mm	0.46 in	Solder

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

1 Port RJ45Through Hole 10 Base-T, AutoMDIX
