MDD200-14N1

Active

IXYS

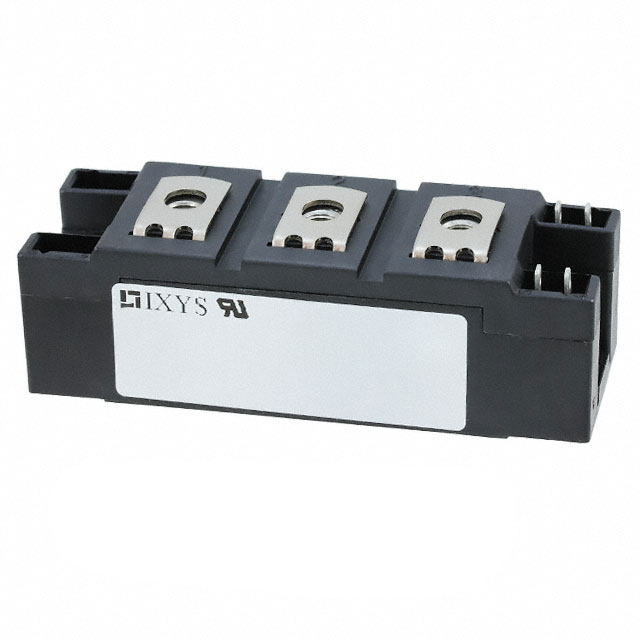

DIODE MODULE GP 1400V 224A Y4-M6

Search across all available documentation for this part.

Active

IXYS

DIODE MODULE GP 1400V 224A Y4-M6

Technical Specifications

Parameters and characteristics for this part

Specification	MDD200-14N1

Current - Average Rectified (Io) (per Diode)	224 A
Current - Reverse Leakage @ Vr	20 mA
Diode Configuration	1 Pair Series Connection
Mounting Type	Chassis Mount
Operating Temperature - Junction [Max]	150 °C
Operating Temperature - Junction [Min]	-40 °C
Package / Case	Y4-M6
Speed	Standard Recovery >500ns
Speed	200 mA
Supplier Device Package	Y4-M6
Technology	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	1400 V
Voltage - Forward (Vf) (Max) @ If	1.3 V

Part	Package / Case	Technology	Voltage - DC Reverse (Vr) (Max) [Max]	Current - Average Rectified (Io) (per Diode)	Current - Reverse Leakage @ Vr	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Voltage - Forward (Vf) (Max) @ If	Supplier Device Package	Mounting Type	Speed	Speed	Diode Configuration
IXYS MDD200-22N1	Y4-M6	Standard	2200 V	224 A	20 mA	150 °C	-40 °C	1.3 V	Y4-M6	Chassis Mount	Standard Recovery >500ns	200 mA	1 Pair Series Connection
IXYS MDD200-16N1	Y4-M6	Standard		224 A	20 mA	150 °C	-40 °C	1.3 V	Y4-M6	Chassis Mount	Standard Recovery >500ns	200 mA	1 Pair Series Connection
IXYS MDD200-14N1	Y4-M6	Standard	1400 V	224 A	20 mA	150 °C	-40 °C	1.3 V	Y4-M6	Chassis Mount	Standard Recovery >500ns	200 mA	1 Pair Series Connection

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Diode Array 1 Pair Series Connection 1400 V 224A Chassis Mount Y4-M6
