901-9895-RFX

Active

Amphenol RF

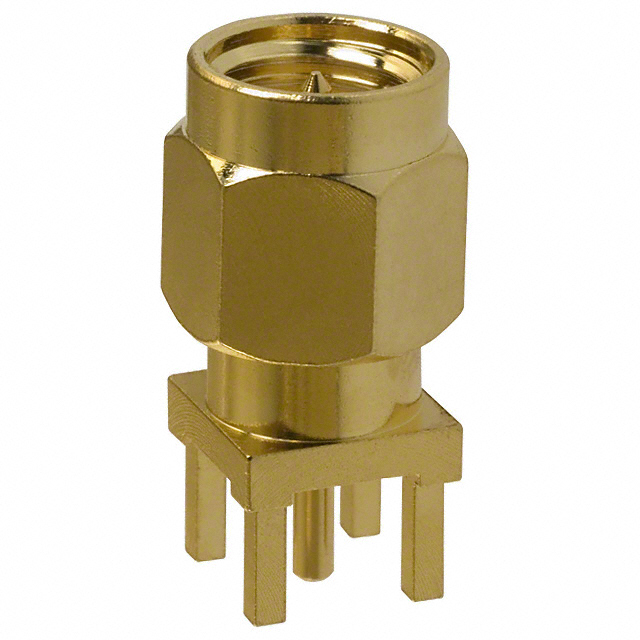

CONN SMA 0HZ TO 18GHZ 50OHM SOLDER ST THRU-HOLE PL GOLD

Deep-Dive with AI

Search across all available documentation for this part.

901-9895-RFX

Active

Amphenol RF

CONN SMA 0HZ TO 18GHZ 50OHM SOLDER ST THRU-HOLE PL GOLD

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	901-9895-RFX

Body Finish	Gold
Body Material	Brass
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	SMA
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	18 GHz
Housing Color	Gold
Impedance	50 Ohms
Ingress Protection	Weatherproof
Mating Cycles	500
Mounting Type	Through Hole
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder

901-98 Series

Part	Impedance	Number of Ports	Body Material	Center Contact Plating	Frequency - Max [Max]	Cable Group	Cable Group [Min]	Cable Group [Max]	Body Finish	Operating Temperature [Min]	Operating Temperature [Max]	Dielectric Material	Contact Termination	Connector Type	Housing Color	Connector Style	Shield Termination	Center Contact Material	Mating Cycles	Mounting Type	Mounting Feature	Includes	Ingress Protection	Voltage Rating	Cable Group	Features
Amphenol RF 901-9805-HP	50 Ohms	1	Stainless Steel	Gold	18 GHz	RG-405 Semi Rigid	0.085 in	0.086 in	Gold; Passivated	-65 ░C	165 °C	Polytetrafluoroethylene (PTFE)	Solder	Male Pin Plug	Gold Silver	SMA	Solder	Beryllium Copper	500	Free Hanging (In-Line)
Amphenol RF 901-9875	50 Ohms	1	Brass	Gold	12.4 GHz	188 188A 316 LMR-100 M17/119-RG174 RG-174			Gold	-65 ░C	165 °C	Polytetrafluoroethylene (PTFE)	Solder	Female Socket Jack	Gold	SMA	Crimp	Beryllium Copper	500		Bulkhead - Front Side Nut	1 Connector 1 Contact 1 Ferrule 1 Heat Shrink 1 Lockwasher 1 Nut	Weatherproof	375 V
Amphenol RF 901-9868-RFX	50 Ohms	1	Brass	Gold	18 GHz				Gold	-65 ░C	165 °C	Polytetrafluoroethylene (PTFE)	Solder	Male Pin Plug	Gold	SMA	Solder	Brass	500	Free Hanging (In-Line)		Connector Contact Insulator
Amphenol RF 901-9863	50 Ohms	1	Stainless Steel	Gold	12.4 GHz	188 188A 316 LMR-100 M17/119-RG174 RG-174			Gold	-65 ░C	165 °C	Polytetrafluoroethylene (PTFE)	Crimp	Jack Male Pin	Gold	RP-SMA	Crimp	Beryllium Copper	500		Bulkhead - Front Side Nut	1 Connector 1 Nut		375 V
Amphenol RF 901-9871	50 Ohms	1	Brass	Gold	12.4 GHz	RG-55			Gold	-65 ░C	165 °C	Polytetrafluoroethylene (PTFE)	Solder	Male Pin Plug	Gold	SMA	Crimp	Brass	500	Free Hanging (In-Line)		1 Connector 1 Contact 1 Ferrule		500 V	142 223 400
Amphenol RF 901-9876-RFX	50 Ohms	1	Brass	Gold	12.4 GHz	141 303 58A 58B 58C 9907 Belden B7806A LMR-195 RG-58			Nickel	-65 ░C	165 °C	Polytetrafluoroethylene (PTFE)	Solder	Male Pin Plug	Silver	SMA	Crimp	Brass	500	Free Hanging (In-Line)		1 Connector 1 Contact 1 Ferrule		500 V
Amphenol RF 901-9892-RFX	50 Ohms	1	Brass	Gold	18 GHz				Nickel	-65 ░C	165 °C	Polytetrafluoroethylene (PTFE)	Solder Cup	Female Socket Receptacle	Silver	SMA	Solder	Beryllium Copper	500		Flange
Amphenol RF 901-9891-RFX	50 Ohms	1	Brass	Gold	18 GHz				Nickel	-65 ░C	165 °C	Polytetrafluoroethylene (PTFE)	Solder	Female Socket Receptacle	Silver	SMA	Solder	Beryllium Copper	500		Flange					Extended Insulation
Amphenol RF 901-9895-RFX	50 Ohms	1	Brass	Gold	18 GHz				Gold	-65 ░C	165 °C	Polytetrafluoroethylene (PTFE)	Solder	Male Pin Plug	Gold	SMA	Solder	Brass	500	Through Hole			Weatherproof
Amphenol RF 901-9872	50 Ohms	1	Brass	Gold	12.4 GHz	188 188A 316 LMR-100 M17/119-RG174 RG-174			Gold	-65 ░C	165 °C	Polytetrafluoroethylene (PTFE)	Solder	Male Pin Plug	Gold	SMA	Crimp	Brass	500	Free Hanging (In-Line) Right Angle		1 Connector 1 Contact 1 End Cap 1 Ferrule 1 Heat Shrink		375 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Arrow	N/A	1	$ 6.50
		10	$ 6.04
		25	$ 5.55
Digikey	Bulk	1	$ 11.04
		10	$ 8.47
		25	$ 7.65
		50	$ 7.10
		100	$ 6.60
		250	$ 6.00
		500	$ 5.60
		1000	$ 5.24

Description

General part information

901-98 Series

SMA Connector Plug, Male Pin 50 Ohms Through Hole Solder
