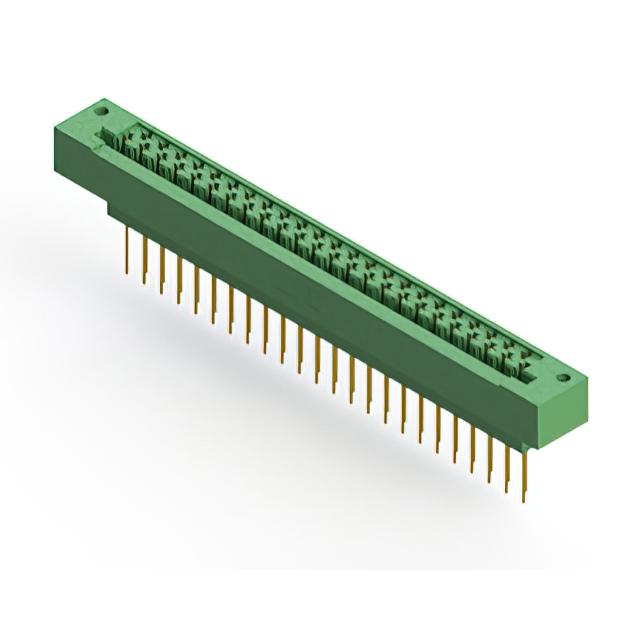

Specification	415-047-541-122

Card Thickness	0.093 in
Card Type	Non Specified, Dual Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Ąin
Contact Material	Copper Alloy
Flange Feature	Top Mount Opening, Unthreaded
Flange Feature Diameter	0.128 in
Gender	Female
Material - Insulation	Diallyl Phthalate, DAP
Mounting Type	Panel Mount, Through Hole
Number of Positions	47
Number of Rows	2
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-65 °C
Pitch	5.08 mm
Termination	Wire Wrap
Termination Rows	2 rows

415-047 Series

Part	Contact Material	Color	Mounting Type	Flange Feature Diameter	Flange Feature	Operating Temperature (Max)	Operating Temperature (Min)	Contact Finish	Number of Positions	Card Thickness	Features	Number of Rows	Gender	Termination	Pitch	Contact Finish Thickness	Card Type	Termination Rows	Material - Insulation	Material Flammability Rating	Note
EDAC Inc. 415-047-500-212	Copper Alloy	Green	Panel Mount Through Hole	0.128 in	Top Mount Opening Unthreaded	125 °C	-65 °C	Gold	47	0.062 in	Card Guides	2	Female	Solder Eyelet(s)	5.08 mm	10 Ąin	Dual Edge Non Specified	2 rows	DAP Diallyl Phthalate
EDAC Inc. 415-047-000-222		Green		0.128 in	Top Mount Opening Unthreaded	125 °C	-65 °C		47	0.093 in	Card Guides				5.08 mm		Dual Edge Non Specified		DAP Diallyl Phthalate	UL94 V-0	Contacts Not Included
EDAC Inc. 415-047-541-222	Copper Alloy	Green	Panel Mount Through Hole	0.128 in	Top Mount Opening Unthreaded	125 °C	-65 °C	Gold	47	0.093 in	Card Guides	2	Female	Wire Wrap	5.08 mm	10 Ąin	Dual Edge Non Specified	2 rows	DAP Diallyl Phthalate
EDAC Inc. 415-047-500-112	Copper Alloy	Green	Panel Mount Through Hole	0.128 in	Top Mount Opening Unthreaded	125 °C	-65 °C	Gold	47	0.062 in		2	Female	Solder Eyelet(s)	5.08 mm	10 Ąin	Dual Edge Non Specified	2 rows	DAP Diallyl Phthalate
EDAC Inc. 415-047-520-112	Copper Alloy	Green	Panel Mount Through Hole	0.128 in	Top Mount Opening Unthreaded	125 °C	-65 °C	Gold	47	0.062 in		2	Female	Solder	5.08 mm	10 Ąin	Dual Edge Non Specified	2 rows	DAP Diallyl Phthalate
EDAC Inc. 415-047-000-212		Green		0.128 in	Top Mount Opening Unthreaded	125 °C	-65 °C		47	0.062 in	Card Guides				5.08 mm		Dual Edge Non Specified		DAP Diallyl Phthalate	UL94 V-0	Contacts Not Included
EDAC Inc. 415-047-520-122	Copper Alloy	Green	Panel Mount Through Hole	0.128 in	Top Mount Opening Unthreaded	125 °C	-65 °C	Gold	47	0.093 in		2	Female	Solder	5.08 mm	10 Ąin	Dual Edge Non Specified	2 rows	DAP Diallyl Phthalate
EDAC Inc. 415-047-541-212	Copper Alloy	Green	Panel Mount Through Hole	0.128 in	Top Mount Opening Unthreaded	125 °C	-65 °C	Gold	47	0.062 in	Card Guides	2	Female	Wire Wrap	5.08 mm	10 Ąin	Dual Edge Non Specified	2 rows	DAP Diallyl Phthalate
EDAC Inc. 415-047-542-122	Copper Alloy	Green	Panel Mount Through Hole	0.128 in	Top Mount Opening Unthreaded	125 °C	-65 °C	Gold	47	0.093 in		2	Female	Wire Wrap	5.08 mm	10 Ąin	Dual Edge Non Specified	2 rows	DAP Diallyl Phthalate
EDAC Inc. 415-047-520-212	Copper Alloy	Green	Panel Mount Through Hole	0.128 in	Top Mount Opening Unthreaded	125 °C	-65 °C	Gold	47	0.062 in	Card Guides	2	Female	Solder	5.08 mm	10 Ąin	Dual Edge Non Specified	2 rows	DAP Diallyl Phthalate
