415-047-000-222

Active

EDAC Inc.

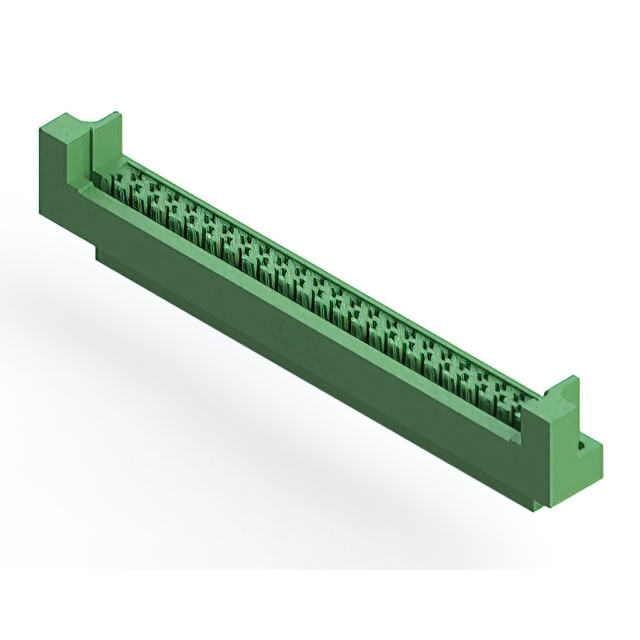

CONN CARDEDGE HSG 47POS .200 2PC

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

415-047-000-222

Active

EDAC Inc.

CONN CARDEDGE HSG 47POS .200 2PC

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	415-047-000-222

Card Thickness	0.093 in
Card Thickness	2.36 mm
Card Type	Non Specified - Dual Edge
Color	Green
Features	Card Guides
Flange Feature	3.25 mm
Flange Feature	0.128 in
Material - Insulation	Diallyl Phthalate (DAP)
Material Flammability Rating	UL94 V-0
Note	Contacts Not Included
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-65 ░C
Pitch [x]	0.2 in
Pitch [x]	5.08 mm

415-047 Series

Part	Termination	Termination Rows	Pitch [x]	Pitch [x]	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material	Color	Card Thickness	Card Thickness	Features	Gender	Contact Finish Thickness	Contact Finish Thickness	Number of Rows	Card Type	Flange Feature	Flange Feature	Material - Insulation	Mounting Type	Contact Finish	Note	Material Flammability Rating
EDAC Inc. 415-047-500-212	Solder Eyelet(s)	2	0.2 in	5.08 mm	125 °C	-65 ░C	Copper Alloy	Green	0.062 in	1.57 mm	Card Guides	Female	10 Áin	0.25 Ám	2	Non Specified - Dual Edge	3.25 mm	0.128 in	Diallyl Phthalate (DAP)	Panel Mount Through Hole	Gold
EDAC Inc. 415-047-000-222			0.2 in	5.08 mm	125 °C	-65 ░C		Green	0.093 in	2.36 mm	Card Guides					Non Specified - Dual Edge	3.25 mm	0.128 in	Diallyl Phthalate (DAP)			Contacts Not Included	UL94 V-0
EDAC Inc. 415-047-541-222	Wire Wrap	2	0.2 in	5.08 mm	125 °C	-65 ░C	Copper Alloy	Green	0.093 in	2.36 mm	Card Guides	Female	10 Áin	0.25 Ám	2	Non Specified - Dual Edge	3.25 mm	0.128 in	Diallyl Phthalate (DAP)	Panel Mount Through Hole	Gold
EDAC Inc. 415-047-500-112	Solder Eyelet(s)	2	0.2 in	5.08 mm	125 °C	-65 ░C	Copper Alloy	Green	0.062 in	1.57 mm		Female	10 Áin	0.25 Ám	2	Non Specified - Dual Edge	3.25 mm	0.128 in	Diallyl Phthalate (DAP)	Panel Mount Through Hole	Gold
EDAC Inc. 415-047-520-112	Solder	2	0.2 in	5.08 mm	125 °C	-65 ░C	Copper Alloy	Green	0.062 in	1.57 mm		Female	10 Áin	0.25 Ám	2	Non Specified - Dual Edge	3.25 mm	0.128 in	Diallyl Phthalate (DAP)	Panel Mount Through Hole	Gold
EDAC Inc. 415-047-000-212			0.2 in	5.08 mm	125 °C	-65 ░C		Green	0.062 in	1.57 mm	Card Guides					Non Specified - Dual Edge	3.25 mm	0.128 in	Diallyl Phthalate (DAP)			Contacts Not Included	UL94 V-0
EDAC Inc. 415-047-520-122	Solder	2	0.2 in	5.08 mm	125 °C	-65 ░C	Copper Alloy	Green	0.093 in	2.36 mm		Female	10 Áin	0.25 Ám	2	Non Specified - Dual Edge	3.25 mm	0.128 in	Diallyl Phthalate (DAP)	Panel Mount Through Hole	Gold
EDAC Inc. 415-047-541-212	Wire Wrap	2	0.2 in	5.08 mm	125 °C	-65 ░C	Copper Alloy	Green	0.062 in	1.57 mm	Card Guides	Female	10 Áin	0.25 Ám	2	Non Specified - Dual Edge	3.25 mm	0.128 in	Diallyl Phthalate (DAP)	Panel Mount Through Hole	Gold
EDAC Inc. 415-047-542-122	Wire Wrap	2	0.2 in	5.08 mm	125 °C	-65 ░C	Copper Alloy	Green	0.093 in	2.36 mm		Female	10 Áin	0.25 Ám	2	Non Specified - Dual Edge	3.25 mm	0.128 in	Diallyl Phthalate (DAP)	Panel Mount Through Hole	Gold
EDAC Inc. 415-047-520-212	Solder	2	0.2 in	5.08 mm	125 °C	-65 ░C	Copper Alloy	Green	0.062 in	1.57 mm	Card Guides	Female	10 Áin	0.25 Ám	2	Non Specified - Dual Edge	3.25 mm	0.128 in	Diallyl Phthalate (DAP)	Panel Mount Through Hole	Gold

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	25	$ 9.64

Description

General part information

415-047 Series

47 Position Card Edge Connector Housing Green 0.200" (5.08mm)

Documents

Technical documentation and resources
