SW3823D
ActiveNKK Switches

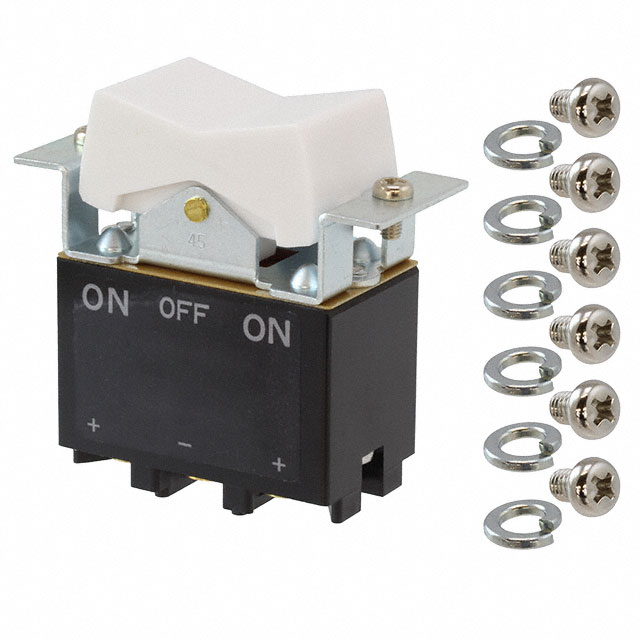

ROCKER SWITCH, ON-OFF-ON, DPDT, NON ILLUMINATED, PANEL, FLANGE, WHITE, SW SERIES
SW3823D
ActiveNKK Switches
ROCKER SWITCH, ON-OFF-ON, DPDT, NON ILLUMINATED, PANEL, FLANGE, WHITE, SW SERIES
Description
General part information
SW3823 Series
Rocker Switch DPDT 30A (DC) Panel Mount, Flange
Technical Specifications
Parameters and characteristics for this part
| Specification | SW3823D |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Concave (Standard V) |
| Approval Agency | UL, CSA |
| Circuit | DPDT |
| Color - Actuator/Cap | White |
| Current Rating | 30 A |
| Electrical Life (Cycles) | 25000 |
| Mechanical Life (Cycles) | 50000 Cycles |
| Mounting Type | Panel Mount, Flange |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -10 °C |
| Switch Function | On-Off-On |
| Termination Style | Screw Terminal |
| Voltage Rating - DC | 30 V |
