DG528EWN+
ActiveAnalog Devices Inc./Maxim Integrated

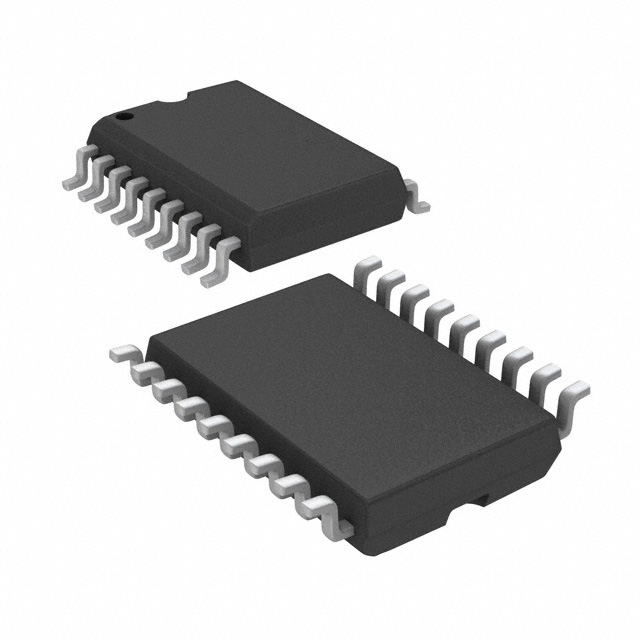

IC MUX 8:1 450OHM 18SOIC
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
DG528EWN+
ActiveAnalog Devices Inc./Maxim Integrated
IC MUX 8:1 450OHM 18SOIC
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | DG528EWN+ | DG528 Series |
|---|---|---|
| Channel Capacitance (CS(off), CD(off)) [custom] | 5 pF | 5 pF |
| Channel Capacitance (CS(off), CD(off)) [custom] | 25 pF | 25 pF |
| Channel-to-Channel Matching (ΔRon) | 27 Ohm | 24 - 27 Ohm |
| Current - Leakage (IS(off)) (Max) | 5 nA | 1 - 5 nA |
| Mounting Type | Surface Mount | Surface Mount, Through Hole |
| Multiplexer/Demultiplexer Circuit | 8:1 | 8:1 |
| Number of Circuits | 1 | 1 |
| On-State Resistance (Max) [Max] | 450 Ohm | 400 - 450 Ohm |
| Operating Temperature | - | 125 °C |
| Operating Temperature | - | -55 °C |
| Operating Temperature [Max] | 85 °C | 70 - 85 °C |
| Operating Temperature [Min] | -40 °C | -40 - 0 °C |
| Package / Case | 18-SOIC | 18-SOIC, 18-CDIP, 20-LCC (J-Lead), 18-DIP |
| Package / Case | - | 7.62 mm |
| Package / Case | - | 0.3 in |
| Package / Case | - | 0.3 in |
| Package / Case | - | 7.62 mm |
| Package / Case [y] | 0.295 in | 0.295 in |
| Package / Case [y] | 7.5 mm | 7.5 mm |
| Supplier Device Package | 18-SOIC | 18-SOIC, 18-CDIP, 20-PLCC (9x9), 18-PDIP |
| Switch Time (Ton, Toff) (Max) [custom] | 1.5 µs | 1.5 µs |
| Switch Time (Ton, Toff) (Max) [custom] | 1.5 µs | 1.5 µs |
| Voltage - Supply, Dual (V±) [Max] | 20 V | 20 V |
| Voltage - Supply, Dual (V±) [Min] | -4.5 V | -4.5 V |
| Voltage - Supply, Single (V+) [Max] | 30 V | 30 V |
| Voltage - Supply, Single (V+) [Min] | 5 V | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 80 | $ 8.31 | |
DG528 Series
IC MUX 8:1 450OHM 18SOIC
| Part | Voltage - Supply, Single (V+) [Min] | Voltage - Supply, Single (V+) [Max] | Switch Time (Ton, Toff) (Max) [custom] | Switch Time (Ton, Toff) (Max) [custom] | Number of Circuits | Current - Leakage (IS(off)) (Max) | Mounting Type | Package / Case [y] | Package / Case [y] | Package / Case | Channel Capacitance (CS(off), CD(off)) [custom] | Channel Capacitance (CS(off), CD(off)) [custom] | Multiplexer/Demultiplexer Circuit | On-State Resistance (Max) [Max] | Channel-to-Channel Matching (ΔRon) | Operating Temperature [Max] | Operating Temperature [Min] | Supplier Device Package | Voltage - Supply, Dual (V±) [Min] | Voltage - Supply, Dual (V±) [Max] | Package / Case | Package / Case | Operating Temperature [Max] | Operating Temperature [Min] | Package / Case [x] | Package / Case [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Analog Devices Inc./Maxim Integrated DG528EWN+ | 5 V | 30 V | 1.5 µs | 1.5 µs | 1 | 5 nA | Surface Mount | 0.295 in | 7.5 mm | 18-SOIC | 5 pF | 25 pF | 8:1 | 450 Ohm | 27 Ohm | 85 °C | -40 °C | 18-SOIC | -4.5 V | 20 V | ||||||
Analog Devices Inc./Maxim Integrated DG528CWN+ | 5 V | 30 V | 1.5 µs | 1.5 µs | 1 | 5 nA | Surface Mount | 0.295 in | 7.5 mm | 18-SOIC | 5 pF | 25 pF | 8:1 | 450 Ohm | 27 Ohm | 70 °C | 0 °C | 18-SOIC | -4.5 V | 20 V | ||||||
Analog Devices Inc./Maxim Integrated DG528AK/883B | 5 V | 30 V | 1 | 1 nA | Through Hole | 18-CDIP | 5 pF | 25 pF | 8:1 | 400 Ohm | 24 Ohm | 18-CDIP | -4.5 V | 20 V | 7.62 mm | 0.3 in | 125 °C | -55 °C | ||||||||
Analog Devices Inc./Maxim Integrated DG528DN+ | 5 V | 30 V | 1.5 µs | 1.5 µs | 1 | 5 nA | Surface Mount | 20-LCC (J-Lead) | 5 pF | 25 pF | 8:1 | 450 Ohm | 27 Ohm | 85 °C | -40 °C | 20-PLCC (9x9) | -4.5 V | 20 V | ||||||||
Analog Devices Inc./Maxim Integrated DG528EWN+T | 5 V | 30 V | 1.5 µs | 1.5 µs | 1 | 5 nA | Surface Mount | 0.295 in | 7.5 mm | 18-SOIC | 5 pF | 25 pF | 8:1 | 450 Ohm | 27 Ohm | 85 °C | -40 °C | 18-SOIC | -4.5 V | 20 V | ||||||
Analog Devices Inc./Maxim Integrated DG528DJ | 5 V | 30 V | 1.5 µs | 1.5 µs | 1 | 5 nA | Through Hole | 18-DIP | 5 pF | 25 pF | 8:1 | 450 Ohm | 27 Ohm | 85 °C | -40 °C | 18-PDIP | -4.5 V | 20 V | 0.3 in | 7.62 mm | ||||||
Analog Devices Inc./Maxim Integrated DG528CCWN+ | Surface Mount | 0.295 in | 7.5 mm | 18-SOIC | 18-SOIC | |||||||||||||||||||||
Analog Devices Inc./Maxim Integrated DG528DJ+ | 5 V | 30 V | 1.5 µs | 1.5 µs | 1 | 5 nA | Through Hole | 18-DIP | 5 pF | 25 pF | 8:1 | 450 Ohm | 27 Ohm | 85 °C | -40 °C | 18-PDIP | -4.5 V | 20 V | 0.3 in | 7.62 mm |
Description
General part information
DG528 Series
1 Circuit IC Switch 8:1 450Ohm 18-SOIC
