GRF2.0215.11

Active

SCHURTER Inc.

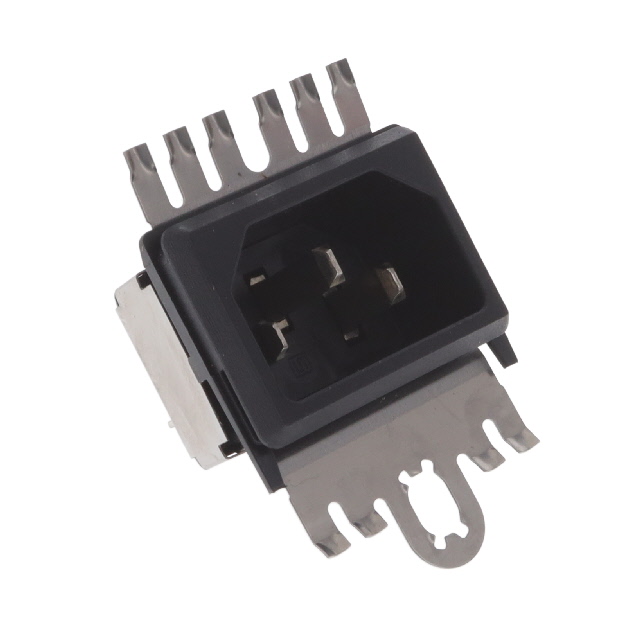

PWR ENT RCPT IEC320-C14 PANEL QC

Search across all available documentation for this part.

Active

SCHURTER Inc.

PWR ENT RCPT IEC320-C14 PANEL QC

Technical Specifications

Parameters and characteristics for this part

Specification	GRF2.0215.11

Accomodates a Fuse	False
Approval Agency	VDE, CCC, UL, CSA
Connector Style	IEC 320-C14
Connector Type	Male Blades, Receptacle
Current Rating - Appliance Inlet	10 A
Features	Shielded
Filter Type	Unfiltered - Commercial
Ingress Protection	IP40
Material Flammability Rating	UL94 V-0
Mounting Type	Panel Mount, Snap-In
Panel Cutout Dimensions [x]	30.5 mm
Panel Cutout Dimensions [y]	20.8 mm
Panel Thickness [custom]	0.059 in
Panel Thickness [custom]	1.5 mm
Termination	0.189 ", 4.8 mm
Termination	Quick Connect
Voltage Rating - Appliance Inlet	250 VAC

PWR ENT RCPT IEC320-C14 PANEL QC

Part	Termination	Termination	Panel Thickness [custom]	Panel Thickness [custom]	Connector Type	Accomodates a Fuse	Filter Type	Current Rating - Appliance Inlet	Material Flammability Rating	Voltage Rating - Appliance Inlet	Mounting Type	Approval Agency	Features	Ingress Protection	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Connector Style
SCHURTER Inc. GRF2.0215.11	0.189 ", 4.8 mm	Quick Connect	0.059 in	1.5 mm	Male Blades, Receptacle		Unfiltered - Commercial	10 A	UL94 V-0	250 VAC	Panel Mount, Snap-In	CCC, CSA, UL, VDE	Shielded	IP40	30.5 mm	20.8 mm	IEC 320-C14

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Entry Connector Receptacle, Male Blades IEC 320-C14 Panel Mount, Snap-In
