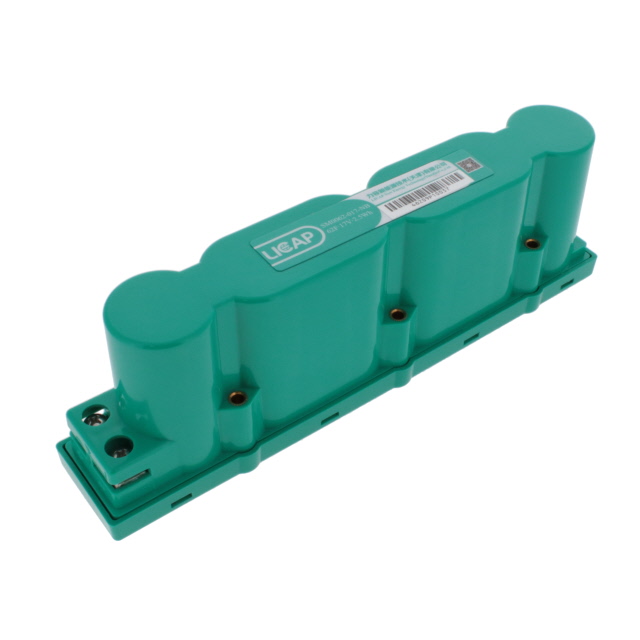

SM0062-017-NB

Obsolete

LICAP Technologies, Inc.

CAPACITOR 62F 0%/20% 17V CHAS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SM0062-017-NB

Obsolete

LICAP Technologies, Inc.

CAPACITOR 62F 0%/20% 17V CHAS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SM0062-017-NB

Capacitance	62 F
ESR (Equivalent Series Resistance)	22 mOhms
Height - Seated (Max) [Max] [z]	2.992 in
Height - Seated (Max) [Max] [z]	76 mm
Lifetime @ Temp.	1500 Hrs
Mounting Type	Chassis Mount
Operating Temperature [Max]	65 °C
Operating Temperature [Min]	-40 °C
Package / Case	Module
Size / Dimension [x]	240 mm
Size / Dimension [x]	9.449 "
Size / Dimension [y]	1.732 in
Size / Dimension [y]	44 mm
Termination	Screw Terminals
Tolerance [Max]	20 %
Tolerance [Min]	0 %
Voltage - Rated	17 V

- Series

Part	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Capacitance	Package / Case	Tolerance [Max]	Size / Dimension [diameter]	Size / Dimension [diameter]	Lifetime @ Temp.	Voltage - Rated	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Termination	ESR (Equivalent Series Resistance)	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Voltage - Rated [diameter]
LICAP Technologies, Inc. SC0350-270-RSS	65 °C	-50 °C	Through Hole	350 F	Radial Can - Solder Lug - 4 Lead	20 %	31.85 mm	1.254 in	1500 Hrs	2.7 VDC	61.5 mm	2.421 in	Solder Lug	2.8 mOhms
LICAP Technologies, Inc. SM0058-016-P	65 °C	-40 °C	Chassis Mount	58 F	Module	20 %			1500 Hrs	16 V	76 mm	2.992 in	Screw Terminals	22 mOhms	240 mm	1.85 "	9.449 "	47 mm
LICAP Technologies, Inc. SM0125-064-ATH	65 °C	-40 °C	Chassis Mount	125 F	Module	20 %			1500 Hrs	64 V			Screw Terminals	8 mOhms	413.5 mm	10.866 in	16.28 in	276 mm	7.126 in	181 mm
LICAP Technologies, Inc. SM0500-016-ATH	65 °C	-40 °C	Chassis Mount	500 F	Module	20 %			1500 Hrs	16 V			Screw Terminals	1.8 mOhm	418 mm	2.677 "	16.457 in	68 mm	7.008 "	178 mm
LICAP Technologies, Inc. SM0062-017-NB	65 °C	-40 °C	Chassis Mount	62 F	Module	20 %			1500 Hrs	17 V	76 mm	2.992 in	Screw Terminals	22 mOhms	240 mm	1.732 in	9.449 "	44 mm
LICAP Technologies, Inc. SC3000-270-ASC	65 °C	-40 °C	Chassis Mount	3000 F	Axial Can - Screw Terminals	20 %	61 mm	2.402 in	1500 Hrs	2.7 VDC			Screw Terminals	0.28 mOhm	165 mm		6.496 in
LICAP Technologies, Inc. SM0062-018-P-1	65 °C	-40 °C	Chassis Mount	62 F	Module	20 %			1500 Hrs		76 mm	2.992 in	Screw Terminals	22 mOhms	240 mm	1.85 "	9.449 "	47 mm			18 V
LICAP Technologies, Inc. SM0058-015-NB	65 °C	-40 °C	Chassis Mount	58 F	Module	20 %			1500 Hrs	15 V	76 mm	2.992 in	Screw Terminals	22 mOhms	240 mm	1.85 "	9.449 "	47 mm
LICAP Technologies, Inc. SM0058-016-P-1	65 °C	-40 °C	Chassis Mount	58 F	Module	20 %			1500 Hrs	16 V	76 mm	2.992 in	Screw Terminals	22 mOhms	240 mm	1.85 "	9.449 "	47 mm
LICAP Technologies, Inc. SC0370-300-RSS	65 °C	-50 °C	Through Hole	370 F	Radial Can - Solder Lug - 4 Lead	20 %	31.85 mm	1.254 in	1500 Hrs	3 VDC			Solder Lug	2.4 mOhms					2.402 in	61 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

- Series

62 F (EDLC) Supercapacitor 17 V Module 22mOhm 1500 Hrs @ 65°C
