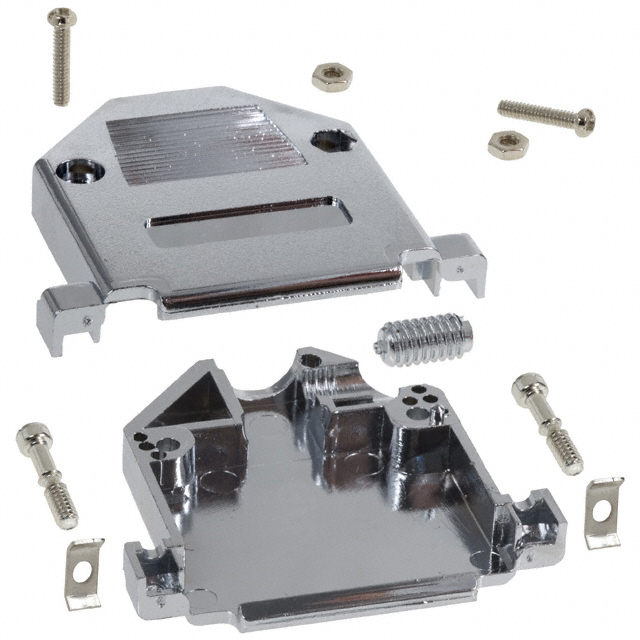

978-025-020R121
ActiveMH Connectors
D SUB BACKSHELL, ARMOR 978 SERIES, DB, 180°, ABS (ACRYLONITRILE BUTADIENE STYRENE) BODY
Deep-Dive with AI
Search across all available documentation for this part.
978-025-020R121
ActiveMH Connectors
D SUB BACKSHELL, ARMOR 978 SERIES, DB, 180°, ABS (ACRYLONITRILE BUTADIENE STYRENE) BODY
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 978-025-020R121 |
|---|---|
| Accessory Type | Two Piece Backshell |
| Cable Exit | 180 ° |
| Cable Type | Round |
| Color | Silver |
| Compatible D-Sub Size | HD44pos, 25pos |
| Compatible Shell Size | B |
| Features | Mating Screws 4-40 |
| Hardware | Assembly Hardware, Strain Relief |
| Material | Plastic, Metallized |
| Plating | Nickel over Copper |
| Primary Material | Plastic |
| Shielding | Shielded |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
978-025 Series
The 978 series straight top entry Backshell is available in 5 industry sizes/positions (9, 15, 25, 37 and 50). The strain relief design ensures secure fit no matter what cable diameter is used. It is available in metalized plastic and plastic.
