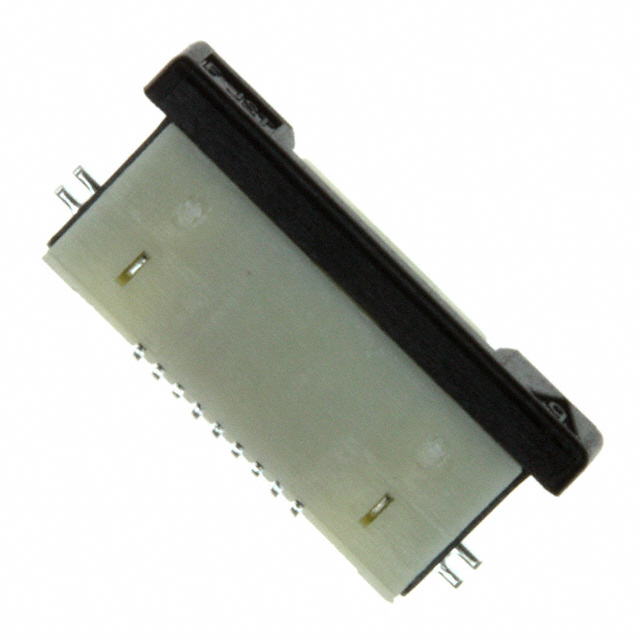

Specification	09FLZ-RSM2-TB

Actuator Color	Black
Actuator Material	Polyamide (PA6T), Nylon 6T
Cable End Type	Tapered
Connector/Contact Type	Contacts, Bottom
Contact Finish	Tin
Contact Material	Phosphor Bronze
Current Rating	0.5 A
Features	Solder Retention, Zero Insertion Force (ZIF)
FFC, FCB Thickness	0.3 mm
Flat Flex Type	FFC, FPC
Height Above Board	0.079 in
Housing Color	Natural
Housing Material	Polyamide, Nylon 6T, PA6T
Locking Feature	Slide Lock
Material Flammability Rating	UL94 V-0
Mounting Type	Right Angle, Surface Mount
Number of Positions	9
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-25 °C
Pitch	0.02 in
Termination	Solder
Voltage Rating	50 V

09FLZ-RS Series

Part	Height Above Board	Material Flammability Rating	FFC, FCB Thickness	Termination	Locking Feature	Number of Positions	Contact Material	Cable End Type	Voltage Rating	Contact Finish	Housing Material	Connector/Contact Type	Mounting Type	Operating Temperature (Max)	Operating Temperature (Min)	Flat Flex Type	Features	Actuator Material	Pitch	Actuator Color	Current Rating	Housing Color
JST Sales America Inc. 09FLZ-RSM2-TB	0.079 in	UL94 V-0	0.3 mm	Solder	Slide Lock	9	Phosphor Bronze	Tapered	50 V	Tin	Nylon 6T PA6T Polyamide	Bottom Contacts	Right Angle Surface Mount	85 °C	-25 °C	FFC FPC	Solder Retention Zero Insertion Force (ZIF)	Nylon 6T Polyamide (PA6T)	0.02 in	Black	0.5 A	Natural
