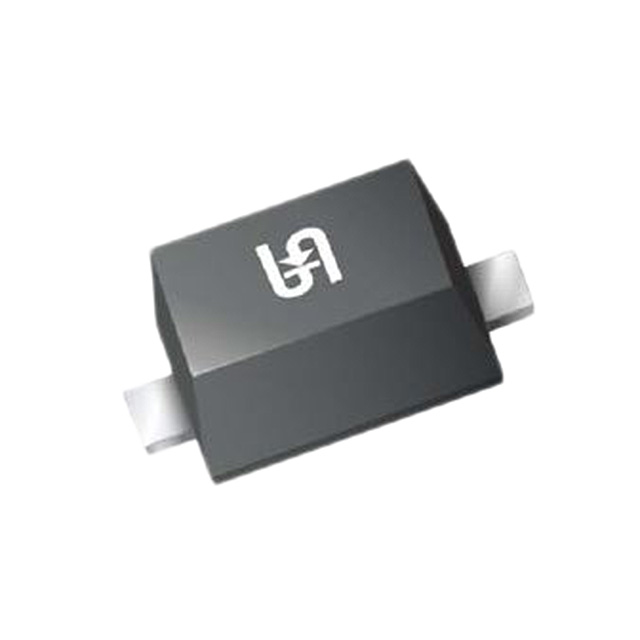

Specification	1N4148W RHG

Capacitance	4 pF
Current - Average Rectified (Io)	150 mA
Current - Reverse Leakage	5 µA
Mounting Type	Surface Mount
Operating Temperature - Junction (Max)	150 °C
Operating Temperature - Junction (Min)	-65 °C
Package / Case	SOD-123F
Package Name	SOD-123F
Reverse Recovery Time (trr)	4 ns
Speed	Any Speed, Small Signal
Speed - Fast Recovery (Maximum)	200 mA
Speed - Small Signal Current Max	200 mA, 200 mA, 200 mA
Technology	Standard
Voltage - DC Reverse (Vr) (Max)	100 V
Voltage - Forward (Vf) (Max)	1 V

1N4148 Series

Part	Package Name	Operating Temperature - Junction (Max)	Operating Temperature - Junction (Min)	Mounting Type	Technology	Voltage - DC Reverse (Vr) (Max)	Current - Average Rectified (Io)	Voltage - Forward (Vf) (Max)	Reverse Recovery Time (trr)	Capacitance	Speed - Small Signal Current Max	Speed	Speed - Fast Recovery (Maximum)	Current - Reverse Leakage	Package / Case	Operating Temperature - Junction
Taiwan Semiconductor Corporation 1N4148W RHG	SOD-123F	150 °C	-65 °C	Surface Mount	Standard	100 V	150 mA	1 V	4 ns	4 pF	200 mA 200 mA 200 mA	Any Speed Small Signal	200 mA	5 µA	SOD-123F
Taiwan Semiconductor Corporation 1N4148WS-G	SOD-323			Surface Mount	Standard	75 V	150 mA	1.25 V	4 ns	2 pF	200 mA 200 mA 200 mA	Any Speed Small Signal	200 mA	1 µA	SC-76 SOD-323	150 °C
Taiwan Semiconductor Corporation 1N4148W-G RHG	SOD-123	150 °C	-65 °C	Surface Mount	Standard	100 V	150 mA	1.25 V	4 ns	2 pF	200 mA 200 mA 200 mA	Any Speed Small Signal	200 mA	2.5 µA	SOD-123
Taiwan Semiconductor Corporation 1N4148	DO-35	150 °C	-65 °C	Through Hole	Standard	100 V	150 mA	1 V	4 ns	4 pF	200 mA 200 mA 200 mA	Any Speed Small Signal	200 mA	5 µA	Axial DO-204AH DO-35
