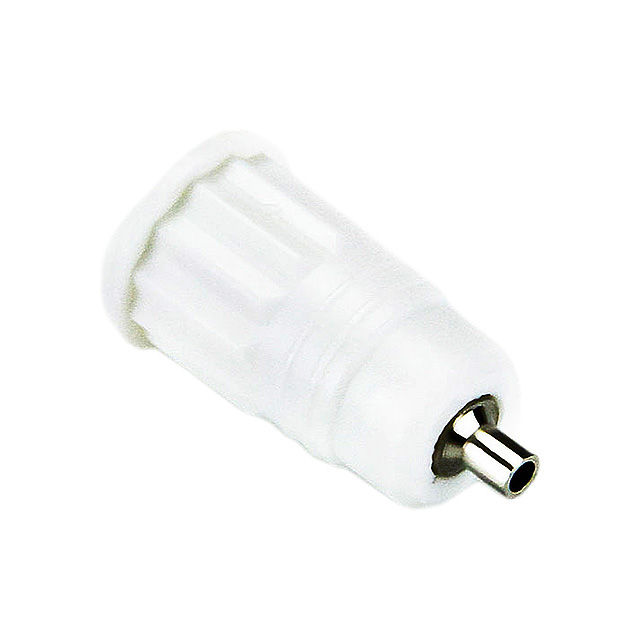

CT2244-9

Active

Cal Test Electronics

CONN 4MM SAFETY BANANA JACK F 1 POS SOLDER ST PANEL MOUNT 1 PORT BAG

Search across all available documentation for this part.

Active

Cal Test Electronics

CONN 4MM SAFETY BANANA JACK F 1 POS SOLDER ST PANEL MOUNT 1 PORT BAG

Technical Specifications

Parameters and characteristics for this part

Part	Insulation	Body Material	Type	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Color	Contact Finish	Contact Material	Plug/Mating Plug Diameter	Gender
Cal Test Electronics CT2244-9	Mating End Insulated	Nylon Polyamide (PA)	Banana Jack	-20 C	80 C	Solder	White	Nickel	Brass	Standard Banana	Female
Cal Test Electronics CT2244-5	Mating End Insulated	Nylon Polyamide (PA)	Banana Jack	-20 C	80 C	Solder	Green	Nickel	Brass	Standard Banana	Female
Cal Test Electronics CT2244-4	Mating End Insulated	Nylon Polyamide (PA)	Banana Jack	-20 C	80 C	Solder	Yellow	Nickel	Brass	Standard Banana	Female
Cal Test Electronics CT2244-2	Mating End Insulated	Nylon Polyamide (PA)	Banana Jack	-20 C	80 C	Solder	Red	Nickel	Brass	Standard Banana	Female

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Arrow	N/A	1	$ 0.95
Digikey	Bulk	1	$ 1.95

General part information

Banana Jack Connector Standard Banana Solder White
