H3BKH-5036G

Unknown

Assmann WSW Components

IDC CBL - HHSR50H/AE50G/HHPK50H

Search across all available documentation for this part.

Unknown

Assmann WSW Components

IDC CBL - HHSR50H/AE50G/HHPK50H

Technical Specifications

Parameters and characteristics for this part

Specification	H3BKH-5036G

Cable Termination	IDC
Connector Type	Socket to Plug
Contact Finish	Gold
Contact Finish Thickness	15 µin
Contact Finish Thickness	0.38 µm
Features	Polarizing Key (Plug), Strain Relief (Socket)
Length [x]	3 ft
Length [x]	914.4 mm
Number of Positions	50
Number of Rows	2
Pitch - Cable	0.05 "
Pitch - Cable	1.27 mm
Pitch - Connector	0.1 in
Pitch - Connector	2.54 mm
Shielding	Unshielded

Part	Connector Type	Number of Rows	Pitch - Cable	Pitch - Cable	Length [x]	Length [x]	Features	Shielding	Pitch - Connector	Pitch - Connector	Cable Termination	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Contact Finish
Assmann WSW Components H3BKH-5036G	Socket to Plug	2	0.05 "	1.27 mm	3 ft	914.4 mm	Polarizing Key (Plug) Strain Relief (Socket)	Unshielded	0.1 in	2.54 mm	IDC	50	15 µin	0.38 µm	Gold
Assmann WSW Components H3BKH-5018G	Socket to Plug	2	0.05 "	1.27 mm	1.5 ft	457.2 mm	Polarizing Key (Plug) Strain Relief (Socket)	Unshielded	0.1 in	2.54 mm	IDC	50	15 µin	0.38 µm	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

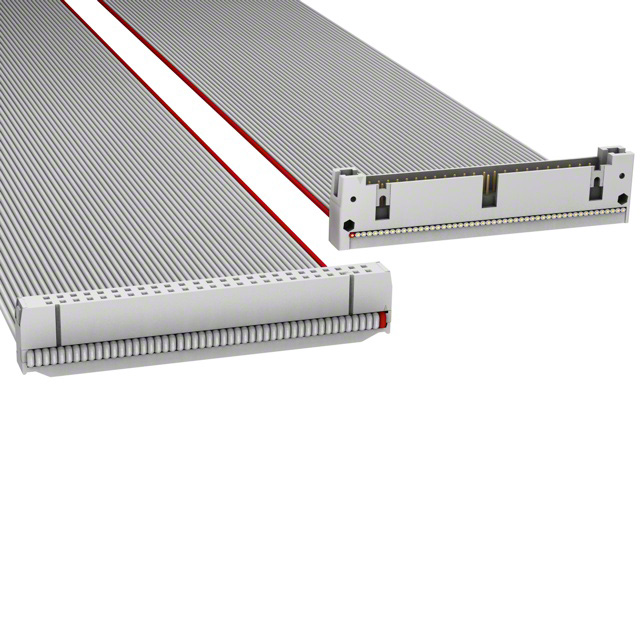

50 Position Cable Assembly Rectangular Socket to Plug 3.00' (914.40mm)
