A6RS-161RF-P

Active

Omron Electronics Inc-EMC Div

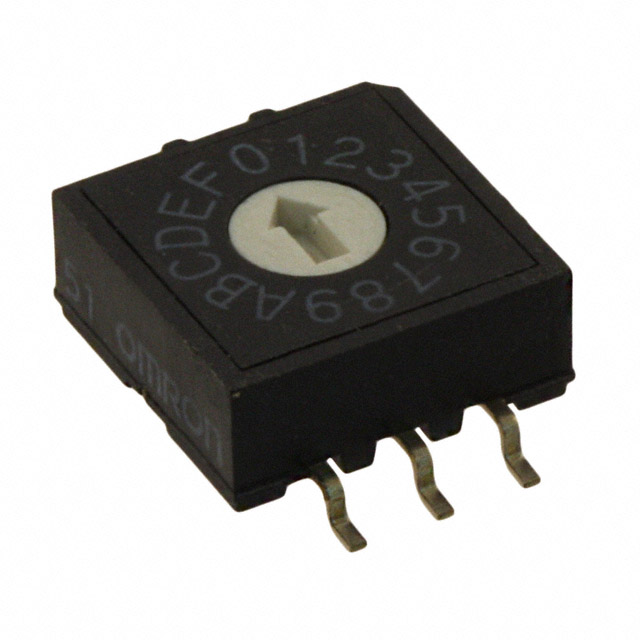

SWITCH ROTARY DIP HEX 0.025A 24V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet How to Read Date Codes

A6RS-161RF-P

Active

Omron Electronics Inc-EMC Div

SWITCH ROTARY DIP HEX 0.025A 24V

Deep-Dive with AI

DocumentsDatasheet How to Read Date Codes

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 4.59
		10	$ 3.73
		25	$ 3.42
		100	$ 3.01
		250	$ 2.76
	Digi-Reel®	1	$ 4.59
		10	$ 3.73
		25	$ 3.42
		100	$ 3.01
		250	$ 2.76
	Tape & Reel (TR)	750	$ 2.48
		1500	$ 2.31
		2250	$ 2.22
		3750	$ 2.11

Description

General part information

A6R Series

Dip Switch Hexadecimal 16 Position Surface Mount Rotary for Tool Actuator 25mA 24VDC

Documents

Technical documentation and resources

Datasheet

How to Read Date Codes

Related Document

Specification	A6RS-161RF-P	A6R Series

Actuator Level	Flush, Recessed	Flush, Recessed, Raised
Actuator Type	Rotary for Tool	Rotary for Tool, Rotary with Shaft
Circuit	Hexadecimal	BCD, Hexadecimal
Current Rating (Amps)	25 mA	25 mA
Electrical Life	5000 Steps	5000 Steps
Features	-	Sealed
Height Above Board	4.7 mm	4.5 - 12 mm
Height Above Board	0.185 in	0.177 - 0.472 in
Height Above Board	-	0.465 "
Height Above Board	-	11.8 mm
Length [x]	0.386 "	0.386 "
Length [x]	9.8 mm	9.8 mm
Mounting Type	Surface Mount	Through Hole, Surface Mount, Through Hole, Right Angle
Number of Positions	16	16
Number of Positions	-	10
Operating Temperature [Max]	80 C	80 C
Operating Temperature [Min]	-25 °C	-25 °C
Pitch	Full	Full
Pitch [x]	0.1 in	0.1 in
Pitch [x]	2.54 mm	2.54 mm
Termination Style	Gull Wing	PC Pin, Gull Wing
Voltage Rating	24 VDC	24 VDC
Washable	False	False

Part

Voltage Rating

Termination Style

Number of Positions

Operating Temperature [Min]

Operating Temperature [Max]

Height Above Board

Electrical Life

Actuator Level

Washable

Circuit

Pitch [x]

Pitch

Pitch [x]

Length [x]

Current Rating (Amps)

Actuator Type

Features

Mounting Type

Number of Positions

Height Above Board [z]

Omron Electronics Inc-EMC Div

A6R-101RF

24 VDC

PC Pin

-25 °C

80 C

0.177 in

4.5 mm
