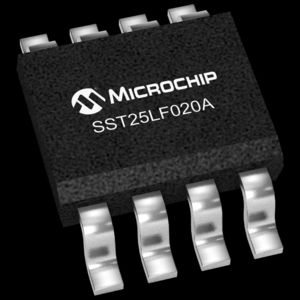

NOR Flash Serial-SPI 3.3V 2Mbit 256K x 8bit 12ns 8-Pin SOIC T/R

SST25LF020A-33-4C-SAE-T

Active

Microchip Technology

NOR FLASH SERIAL-SPI 3.3V 2MBIT 256K X 8BIT 12NS 8-PIN SOIC T/R

Find alt

Alpha

SST25LF020A-33-4C-SAE-T

Active

Microchip Technology

NOR FLASH SERIAL-SPI 3.3V 2MBIT 256K X 8BIT 12NS 8-PIN SOIC T/R

Find alt

Alpha

Description Specifications Series Pricing CAD Documents

Description

General part information

SST25LF020A Series

SST's serial flash family features a four-wire, SPI-compatible interface that allows for a low pin-count package occupying less board space and ultimately lowering total system costs. SST25LF020A SPI serial flash memories are manufactured with SST proprietary, high performance CMOS SuperFlash technology. The splitgate cell design and thick-oxide tunneling injector attain better reliability and manufacturability compared with alternate approaches.

Technical Specifications

Parameters and characteristics for this part

Specification	SST25LF020A-33-4C-SAE-T

Clock Frequency	33 MHz
Memory Depth	256 K
Memory Format	FLASH
Memory Interface (Type)	SPI
Memory Size	2 Mb
Memory Type	Non-Volatile
Memory Width	8 bit
Mounting Type	Surface Mount
Operating Temperature (Max)	70 °C
Operating Temperature (Min)	0 °C
Package Length	0.154 in
Package Name	8-SOIC
Package Width	3.9 mm
Technology	FLASH
Voltage - Supply (Maximum)	3.6 V
Voltage - Supply (Minimum)	3 V
Write Cycle Time - Page	20 µs
Write Cycle Time - Word	20 µs

SST25LF020A Series

2Mb 3-3.6V SPI Serial Flash

Part	Technology	Package Name	Operating Temperature (Min)	Operating Temperature (Max)	Memory Size	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)	Memory Interface (Type)	Memory Width	Memory Depth	Memory Type	Clock Frequency	Package Length	Package Width	Mounting Type	Write Cycle Time - Word	Write Cycle Time - Page	Memory Format	Package / Case
Microchip Technology SST25LF020A-33-4C-SAE-T	FLASH	8-SOIC	0 °C	70 °C	2 Mb	3.6 V	3 V	SPI	8 bit	256 K	Non-Volatile	33 MHz	0.154 in	3.9 mm	Surface Mount	20 µs	20 µs	FLASH
Microchip Technology SST25LF020A-33-4C-QAE-T	FLASH	8-WSON	0 °C	70 °C	2 Mb	3.6 V	3 V	SPI	8 bit	256 K	Non-Volatile	33 MHz			Surface Mount	20 µs	20 µs	FLASH	8-WDFN Exposed Pad
Microchip Technology SST25LF020A-33-4I-QAE	FLASH	8-WSON	-40 °C	85 °C	2 Mb	3.6 V	3 V	SPI	8 bit	256 K	Non-Volatile	33 MHz			Surface Mount	20 µs	20 µs	FLASH	8-WDFN Exposed Pad
Microchip Technology SST25LF020A-33-4I-SAE	FLASH	8-SOIC	-40 °C	85 °C	2 Mb	3.6 V	3 V	SPI	8 bit	256 K	Non-Volatile	33 MHz	0.154 in	3.9 mm	Surface Mount	20 µs	20 µs	FLASH
Microchip Technology SST25LF020A-33-4C-SAE	FLASH	8-SOIC	0 °C	70 °C	2 Mb	3.6 V	3 V	SPI	8 bit	256 K	Non-Volatile	33 MHz	0.154 in	3.9 mm	Surface Mount	20 µs	20 µs	FLASH
Microchip Technology SST25LF020A-33-4I-SAE-T	FLASH	8-SOIC	-40 °C	85 °C	2 Mb	3.6 V	3 V	SPI	8 bit	256 K	Non-Volatile	33 MHz	0.154 in	3.9 mm	Surface Mount	20 µs	20 µs	FLASH

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

Datasheet

SST25LF020A-33-4C-SAE-T | Datasheet

Memory Products Brochure

SST25LF020A - 2-Mbit SPI Serial Flash
