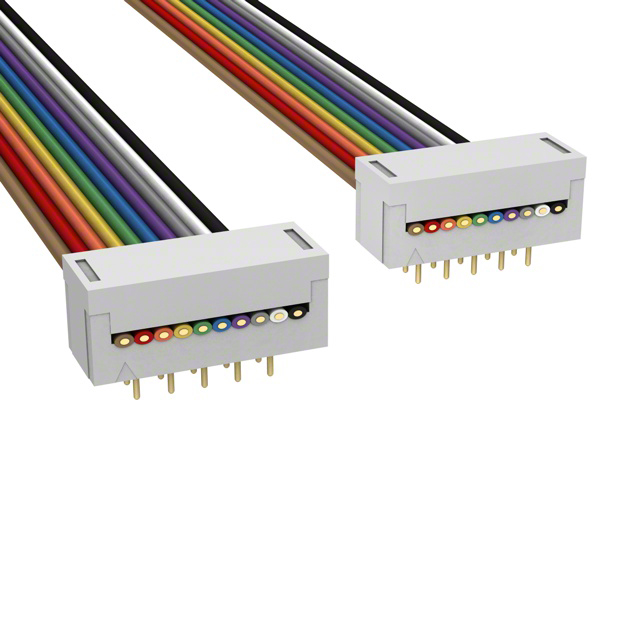

H8MMH-1006M

Active

Assmann WSW Components

DIP CABLE - HDM10H/AE10M/HDM10H

Search across all available documentation for this part.

Active

Assmann WSW Components

DIP CABLE - HDM10H/AE10M/HDM10H

Technical Specifications

Parameters and characteristics commom to parts in this series

DIP CABLE - HDM10H/AE10G/HDM10H

Part	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Cable Termination	Usage	Length	Length	Length	Pitch - Connector	Pitch - Connector	Number of Rows	Contact Finish	Shielding	Connector Type	Pitch - Cable	Pitch - Cable	Length [x]	Length [x]	Color
Assmann WSW Components H8MMH-1006G	0.76 Ám	30 Áin	10	IDC	Board In, Socket (0.1")	152.4 mm	6 "	0.5 '	0.1 in	2.54 mm	2	Gold	Unshielded	DIP to DIP, Reversed	0.05 "	1.27 mm
Assmann WSW Components H8MMH-1018G	0.76 Ám	30 Áin	10	IDC	Board In, Socket (0.1")				0.1 in	2.54 mm	2	Gold	Unshielded	DIP to DIP, Reversed	0.05 "	1.27 mm	457.2 mm	1.5 ft
Assmann WSW Components H8MMH-1036G	0.76 Ám	30 Áin	10	IDC	Board In, Socket (0.1")				0.1 in	2.54 mm	2	Gold	Unshielded	DIP to DIP, Reversed	0.05 "	1.27 mm	914.4 mm	3 ft
Assmann WSW Components H8MMH-1006M	0.76 Ám	30 Áin	10	IDC	Board In, Socket (0.1")	152.4 mm	6 "	0.5 '	0.1 in	2.54 mm	2	Gold	Unshielded	DIP to DIP, Reversed	0.05 "	1.27 mm			Multiple, Ribbon

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

10 Position Cable Assembly Rectangular DIP to DIP, Reversed 0.500' (152.40mm, 6.00")
