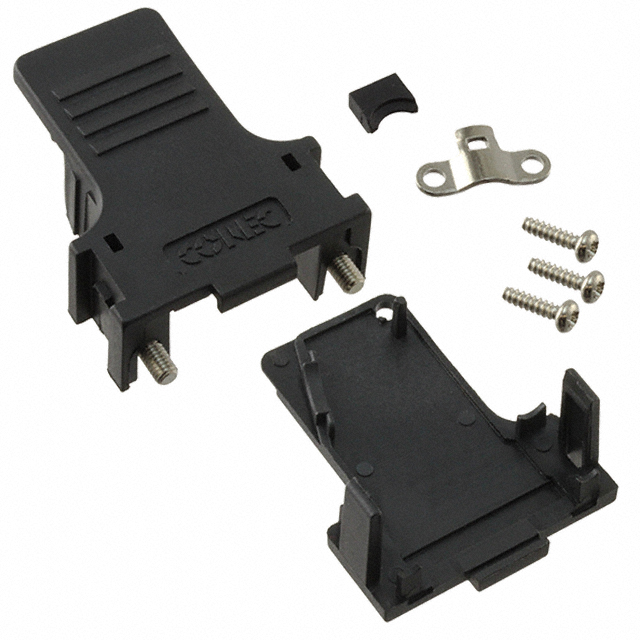

165X14559X

Active

Amphenol CONEC

CONN BACKSHELL 9POS 45DEG BLACK

Search across all available documentation for this part.

Active

Amphenol CONEC

CONN BACKSHELL 9POS 45DEG BLACK

Technical Specifications

Parameters and characteristics for this part

Part	Shielding	Material	Number of Positions	Accessory Type	Color	Primary Material	Compatible D-Sub Size	Hardware	Cable Type	Cable Exit	Compatible Shell Size	Features
Amphenol CONEC 165X14549X	Unshielded	Polybutylene Terephthalate (PBT)	50	Two Piece Backshell	Black	Plastic	50pos HD78pos	Assembly Hardware Cable Clamp Strain Relief	Round	180 °	D	IP20 Mating Screws M3
Amphenol CONEC 165X14539X	Unshielded	Polyester	37	Two Piece Backshell	Black	Plastic	37pos HD62pos		Round	180 °	C	Mating Screws M3
Amphenol CONEC 165X14519X	Unshielded	Polyester	15	Two Piece Backshell	Black	Plastic	15pos HD26pos		Round	180 °	A	Mating Screws M3
Amphenol CONEC 165X14599X	Unshielded	Polyester	50	Two Piece Backshell	Black	Plastic	50pos HD78pos		Round	45 °	D	Mating Screws M3
Amphenol CONEC 165X14509X	Unshielded	Polyester	9	Two Piece Backshell	Black	Plastic	9pos HD15pos		Round	180 °	E	Mating Screws M3
Amphenol CONEC 165X14559X	Unshielded	Polyester	9	Two Piece Backshell	Black	Plastic	9pos HD15pos		Round	45 °	E	Mating Screws M3
Amphenol CONEC 165X14529X	Unshielded	Polyester		Two Piece Backshell	Black	Plastic	25pos HD44pos		Round	180 °	B	Mating Screws M3

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	90	$ 6.45

General part information

9 Position Two Piece Backshell Connector Black 45° Unshielded
