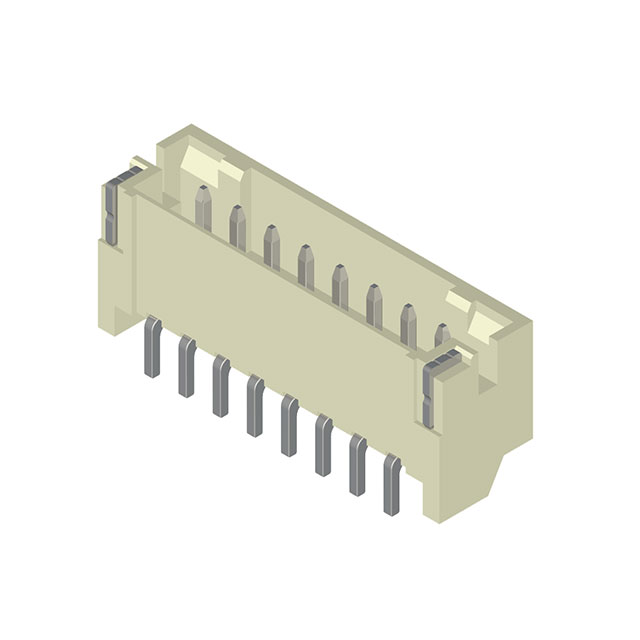

CI0105M1HR0-NH

Active

Cvilux USA

5 POS 2.00MM(.079) SINGLE ROW SM

Search across all available documentation for this part.

Active

Cvilux USA

5 POS 2.00MM(.079) SINGLE ROW SM

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CI0105M1HR0-NH	CI0105M1 Series

Connector Type	Header	Header
Contact Finish - Post	Tin	Tin
Contact Finish Thickness - Mating	120 µin	120 µin
Contact Finish Thickness - Mating	3.05 Ám	3.05 Ám
Contact Finish Thickness - Post	120 Áin	120 Áin
Contact Finish Thickness - Post	3.05 Ám	3.05 Ám
Contact Length - Mating	3.61 mm	3.61 mm
Contact Length - Mating	0.142 in	0.142 in
Contact Material	Brass	Brass
Contact Shape	Square	Square
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	2 A	2 A
Fastening Type	Detent Lock	Detent Lock
Features	Solder Retention	Solder Retention, Pick and Place
Insulation Color	Natural	Natural
Insulation Height [custom]	5.51 mm	5.51 mm
Insulation Height [custom]	0.217 in	0.217 in
Insulation Material	Polyamide (PA6T), Halogen Free, Nylon 6T	Polyamide (PA6T), Halogen Free, Nylon 6T
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Surface Mount, Right Angle	Surface Mount, Right Angle, Surface Mount
Number of Positions Loaded	All	All
Number of Rows	1	1
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-25 °C	-25 °C
Pitch - Mating [x]	0.079 in	0.079 in
Pitch - Mating [x]	2 mm	2 mm
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall
Style	Board to Cable/Wire	Board to Cable/Wire
Termination	Solder	Solder
Voltage Rating	250 VAC	250 VAC

5 POS 2.00MM(.079) SINGLE ROW SM

Part	Contact Type	Insulation Material	Current Rating (Amps)	Termination	Fastening Type	Pitch - Mating [x]	Pitch - Mating [x]	Number of Rows	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Color	Features	Connector Type	Voltage Rating	Style	Insulation Height [custom]	Insulation Height [custom]	Mounting Type	Number of Positions Loaded	Shrouding	Contact Finish - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Material	Material Flammability Rating	Contact Shape	Contact Length - Mating	Contact Length - Mating
Cvilux USA CI0105M1HR0-NH	Male Pin	Halogen Free, Nylon 6T, Polyamide (PA6T)	2 A	Solder	Detent Lock	0.079 in	2 mm	1	-25 °C	105 ░C	Natural	Solder Retention	Header	250 VAC	Board to Cable/Wire	5.51 mm	0.217 in	Surface Mount, Right Angle	All	Shrouded - 4 Wall	Tin	120 µin	3.05 Ám	120 Áin	3.05 Ám	Brass	UL94 V-0	Square	3.61 mm	0.142 in
Cvilux USA CI0105M1VR0-NH	Male Pin	Halogen Free, Nylon 6T, Polyamide (PA6T)	2 A	Solder	Detent Lock	0.079 in	2 mm	1	-25 °C	105 ░C	Natural	Pick and Place, Solder Retention	Header	250 VAC	Board to Cable/Wire			Surface Mount	All	Shrouded - 4 Wall	Tin	120 µin	3.05 Ám	120 Áin	3.05 Ám	Brass	UL94 V-0	Square	3.61 mm	0.142 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Surface Mount, Right Angle 5 position 0.079" (2.00mm)
