Q-63064000K002M
ActiveAmphenol Custom Cable

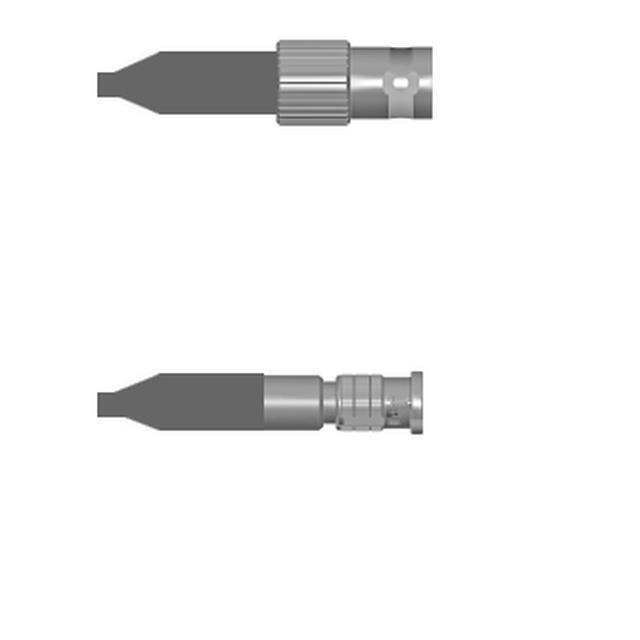

CBL ASSY BNC-HDBNC JACK-PLG 6.6'
Deep-Dive with AI
Search across all available documentation for this part.
Q-63064000K002M
ActiveAmphenol Custom Cable
CBL ASSY BNC-HDBNC JACK-PLG 6.6'
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | Q-63064000K002M |
|---|---|
| 1st Connector | BNC Jack |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Female |
| 2nd Connector | HD-BNC Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Type | Belden 4855R |
| Color | Black |
| Features | Shielded |
| Frequency - Max [Max] | 12 GHz |
| Length | 6.6 ft |
| Length | 78.7 in |
| Length | 2 m |
| Overall Impedance | 75 Ohms |
| Style | BNC to HD-BNC |
Q-630640 Series
| Part | Color | 1st Connector | Length | Length | Length | Frequency - Max [Max] | 2nd Contact Gender | 1st Contact Gender | Overall Impedance | 2nd Connector Mounting Type | Features | 1st Connector Mounting Type | 2nd Connector | Style | Cable Type | Length [x] | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Custom Cable | Black | BNC Jack | 3 m | 118.1 in | 9.8 ' | 12 GHz | Male | Female | 75 Ohms | Free Hanging (In-Line) | Shielded | Free Hanging (In-Line) | HD-BNC Plug | BNC to HD-BNC | Belden 4855R | |||
Amphenol Custom Cable | Black | BNC Jack | 50 cm | 19.69 " | 12 GHz | Male | Female | 75 Ohms | Free Hanging (In-Line) | Shielded | Free Hanging (In-Line) | HD-BNC Plug | BNC to HD-BNC | Belden 4855R | ||||
Amphenol Custom Cable | Black | BNC Jack | 2.5 m | 98.4 in | 8.2 ' | 12 GHz | Male | Female | 75 Ohms | Free Hanging (In-Line) | Shielded | Free Hanging (In-Line) | HD-BNC Plug | BNC to HD-BNC | Belden 4855R | |||
Amphenol Custom Cable | Black | BNC Jack | 228.6 mm | 9 " | 12 GHz | Male | Female | 75 Ohms | Free Hanging (In-Line) | Shielded | Free Hanging (In-Line) | HD-BNC Plug | BNC to HD-BNC | Belden 4855R | ||||
Amphenol Custom Cable | Black | BNC Jack | 12 GHz | Male | Female | 75 Ohms | Free Hanging (In-Line) | Shielded | Free Hanging (In-Line) | HD-BNC Plug | BNC to HD-BNC | Belden 4855R | 457.2 mm | 457.2 mm | ||||
Amphenol Custom Cable | Black | BNC Jack | 1.8 m | 72 in | 6 ft | 12 GHz | Male | Female | 75 Ohms | Free Hanging (In-Line) | Shielded | Free Hanging (In-Line) | HD-BNC Plug | BNC to HD-BNC | Belden 4855R | |||
Amphenol Custom Cable | Black | BNC Jack | 750 mm | 29.53 " | 12 GHz | Male | Female | 75 Ohms | Free Hanging (In-Line) | Shielded | Free Hanging (In-Line) | HD-BNC Plug | BNC to HD-BNC | Belden 4855R | ||||
Amphenol Custom Cable | Black | BNC Jack | 12 GHz | Male | Female | 75 Ohms | Free Hanging (In-Line) | Shielded | Free Hanging (In-Line) | HD-BNC Plug | BNC to HD-BNC | Belden 4855R | 250 mm | 9.843 " | ||||
Amphenol Custom Cable | Black | BNC Jack | 2 m | 78.7 in | 6.6 ft | 12 GHz | Male | Female | 75 Ohms | Free Hanging (In-Line) | Shielded | Free Hanging (In-Line) | HD-BNC Plug | BNC to HD-BNC | Belden 4855R | |||
Amphenol Custom Cable | Black | BNC Jack | 152.4 mm | 6 in | 12 GHz | Male | Female | 75 Ohms | Free Hanging (In-Line) | Shielded | Free Hanging (In-Line) | HD-BNC Plug | BNC to HD-BNC | Belden 4855R |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 116.85 | |
| 25 | $ 108.78 | |||
| 50 | $ 100.71 | |||
| 100 | $ 93.80 | |||
| 250 | $ 88.04 | |||
Description
General part information
Q-630640 Series
Cable Assembly Coaxial BNC to HD-BNC Belden 4855R 78.7" (2.0m) 6.6'
Documents
Technical documentation and resources
No documents available
