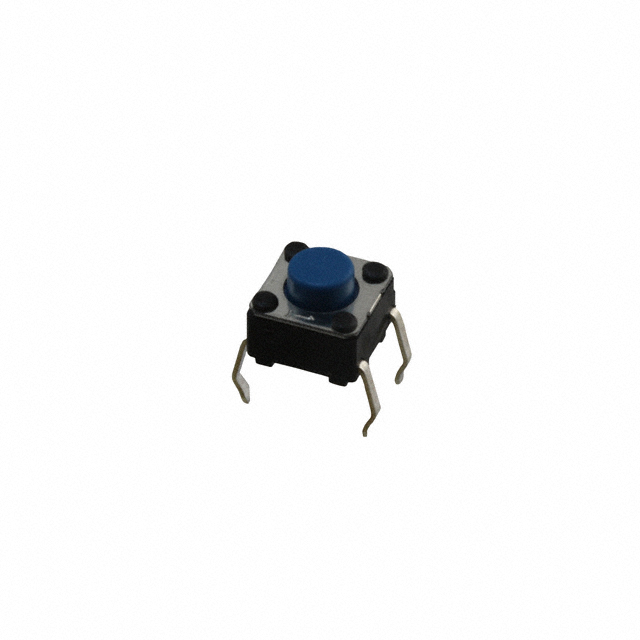

B3F-1026
ActiveOmron Electronics Inc-EMC Div
SWITCH TACTILE SPST-NO 0.05A 24V
Deep-Dive with AI
Search across all available documentation for this part.
B3F-1026
ActiveOmron Electronics Inc-EMC Div
SWITCH TACTILE SPST-NO 0.05A 24V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | B3F-1026 |
|---|---|
| Actuator Height off PCB, Vertical | 5 mm |
| Actuator Orientation | Top Actuated |
| Actuator Type | Standard |
| Circuit | SPST-NO |
| Contact Rating @ Voltage | 0.05 A, 24 VDC |
| Illumination | Non-Illuminated |
| Mounting Type | Through Hole |
| Operating Force | 0.5 kgf |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -25 °C |
| Outline [x] | 6 mm |
| Outline [y] | 6 mm |
| Switch Function | Off-Mom |
| Switch Travel | 0.25 mm |
| Termination Style | PC Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.76 | |
| 10 | $ 0.57 | |||
| 25 | $ 0.55 | |||
| 100 | $ 0.52 | |||
| 250 | $ 0.51 | |||
| 500 | $ 0.50 | |||
| 1500 | $ 0.51 | |||
| 3000 | $ 0.48 | |||
| 6000 | $ 0.45 | |||
Description
General part information
B3F Series
Tactile Switch SPST-NO Top Actuated Through Hole
