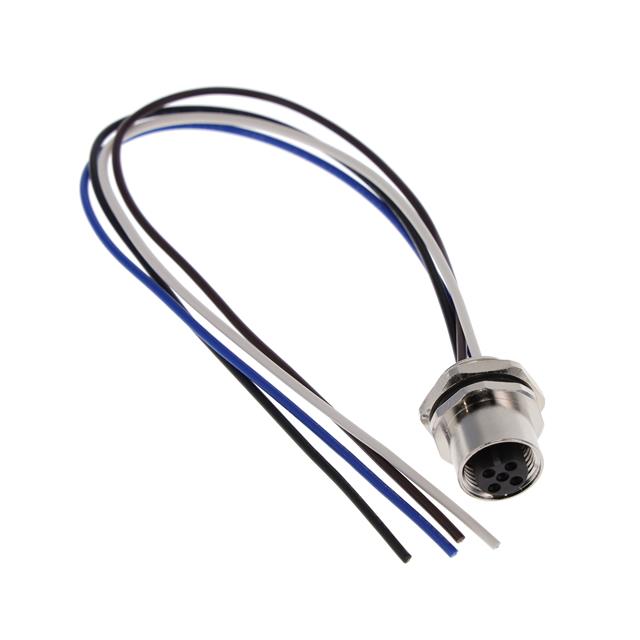

T4171310004-001
ActiveTE Connectivity AMP Connectors
CIRC CBL 4POS RCPT TO WIRE 0.66'
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | T4171310004-001 | T41713 Series |
|---|---|---|
| 1st Connector Gender | Female Sockets | Female Sockets |
| 1st Connector Mounting Type | Panel Mount | Panel Mount |
| 1st Connector Number of Positions | 4 | 4 - 5 |
| 1st Connector Number of Positions Loaded | 4 | 2 - 4 |
| 1st Connector Number of Positions Loaded | - | All |
| 1st Connector Orientation | A | D, A, B |
| 1st Connector Shell Size - Insert | M12 | M12 |
| 1st Connector Type | Receptacle | Receptacle |
| 2nd Connector Type | Wire Leads | Wire Leads |
| Assembly Configuration | Standard | Standard |
| Cable Material | Polyvinyl Chloride (PVC) | Polyvinyl Chloride (PVC) |
| Cable Type | Individual | Individual |
| Color | Multiple | Blue, Brown, Multiple |
| Ingress Protection | IP67 - Dust Tight, Waterproof | IP67 - Dust Tight, Waterproof |
| Length | 200 mm | 200 mm |
| Length [x] | 0.66 ft | 0.66 ft |
| Usage | Industrial Environments | Industrial Environments |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 10.03 | |
| 10 | $ 8.31 | |||
| 25 | $ 7.71 | |||
| 50 | $ 7.29 | |||
| 100 | $ 6.89 | |||
| 250 | $ 6.39 | |||
| 500 | $ 6.05 | |||
| 1000 | $ 5.72 | |||
T41713 Series
CIRC CBL 5POS RCPT TO WIRE 0.66'
| Part | Cable Type | 2nd Connector Type | 1st Connector Number of Positions | Assembly Configuration | Usage | 1st Connector Mounting Type | Cable Material | 1st Connector Orientation | 1st Connector Gender | Length | Length [x] | 1st Connector Shell Size - Insert | 1st Connector Number of Positions Loaded | Ingress Protection | 1st Connector Type | Color | 1st Connector Number of Positions Loaded |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors T4171310502-001 | Individual | Wire Leads | 5 | Standard | Industrial Environments | Panel Mount | Polyvinyl Chloride (PVC) | D | Female Sockets | 200 mm | 0.66 ft | M12 | 2 | IP67 - Dust Tight, Waterproof | Receptacle | Blue, Brown | |
TE Connectivity AMP Connectors T4171310004-001 | Individual | Wire Leads | 4 | Standard | Industrial Environments | Panel Mount | Polyvinyl Chloride (PVC) | A | Female Sockets | 200 mm | 0.66 ft | M12 | 4 | IP67 - Dust Tight, Waterproof | Receptacle | Multiple | |
TE Connectivity AMP Connectors T4171310505-001 | Individual | Wire Leads | 5 | Standard | Industrial Environments | Panel Mount | Polyvinyl Chloride (PVC) | D | Female Sockets | 200 mm | 0.66 ft | M12 | IP67 - Dust Tight, Waterproof | Receptacle | Multiple | All | |
TE Connectivity AMP Connectors T4171310402-001 | Individual | Wire Leads | 5 | Standard | Industrial Environments | Panel Mount | Polyvinyl Chloride (PVC) | B | Female Sockets | 200 mm | 0.66 ft | M12 | 2 | IP67 - Dust Tight, Waterproof | Receptacle | Blue, Brown | |
TE Connectivity AMP Connectors T4171310405-001 | Individual | Wire Leads | 5 | Standard | Industrial Environments | Panel Mount | Polyvinyl Chloride (PVC) | B | Female Sockets | 200 mm | 0.66 ft | M12 | IP67 - Dust Tight, Waterproof | Receptacle | Multiple | All | |
TE Connectivity AMP Connectors T4171310002-001 | Individual | Wire Leads | 5 | Standard | Industrial Environments | Panel Mount | Polyvinyl Chloride (PVC) | A | Female Sockets | 200 mm | 0.66 ft | M12 | 2 | IP67 - Dust Tight, Waterproof | Receptacle | Blue, Brown | |
TE Connectivity AMP Connectors T4171310503-001 | Individual | Wire Leads | 5 | Standard | Industrial Environments | Panel Mount | Polyvinyl Chloride (PVC) | D | Female Sockets | 200 mm | 0.66 ft | M12 | 3 | IP67 - Dust Tight, Waterproof | Receptacle | Multiple |
Description
General part information
T41713 Series
Circular Cable Assembly 0.66' (200.00mm)
